Outland Technology Video & Power Cable - Price per Foot

Name: Outland Technology Video & Power Cable - Price per Foot
Brand: Outland Technology
SKU: OTI-C-2300
Price: 5.20 USD
Availability: InStock

SHIP NOW

SKU

OTI-C-2300

List Price: $5.50

$5.20

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

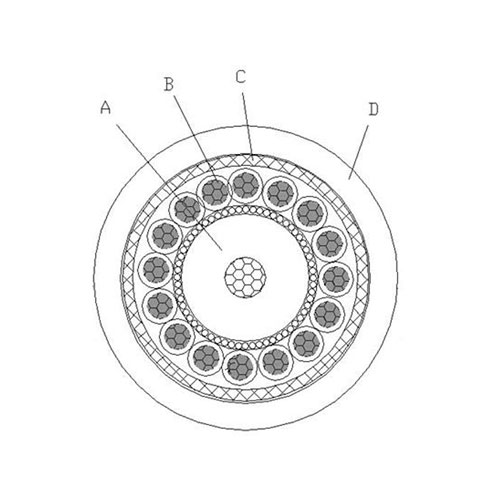

	Features: Small, rugged, Orange Replaces the C-1500, C-2000, C-2300,a,b and C5500 CABLES Specifications: Braided Kevlar strength member (1200 lbs.) Lengths: Up to 5000 ft Material: Orange Polyurethane jacket Temp. Rating: -40 to +90C Diameter: .380 inch Weight: 38 lbs.(17.5Kg) per 500 ft Electrical: Conductors: 16 #22 awg and 1 mini RG-59 coax 300 volt rated conductors Features Multi conductor cable for all cameras. Small in diameter. Rugged design. This orange dive cable comes standard in Outland Technology video systems. The cable is composed of sixteen #22 awg wires and a center Coax RG-59 wire. Mechanical Specifications Strength Member: Braided kevlar (Figure C in diagram above) Breaking Strength: 1,200 lbs. (544 kg) Outer Jacket Material: Orange polyurethane (Figure D in diagram above) Temperature Rating: -40°F to 194°F (-40°C to 90°C) Outer Diameter: 3/8 in. (9.7 mm) Weight Per 100 ft. in Air: 7.6 lbs. (3.5 kg) Weight Per 100 ft. in Water: 2.3 lbs. (1.0 kg) Recommended Bend Radius: >3.4 in (5.1 cm) Electrical Specifications Conductor Voltage Ratings: 300V Conductors: 1 x 75 Ω Coax (Figure A in diagram above) Element Ring (Figure B in diagram above): 2 x 22AWG (Red) 1 x 22AWG (Blue) 1 x 22AWG (Orange) 2 x 22AWG (Green) 5 x 22AWG (Black) 5 x 22AWG (White)

Information

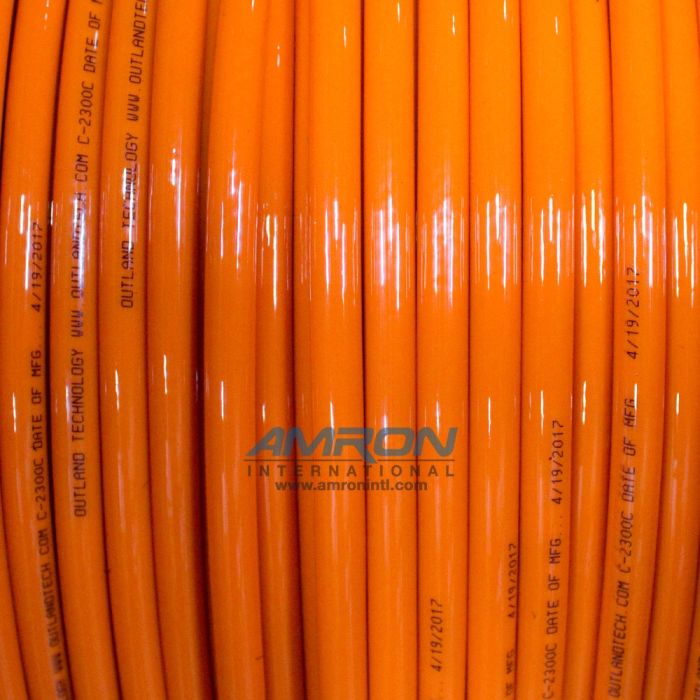

This orange dive cable comes standard in Outland Technology video systems. The cable is composed of sixteen #22 awg wires and a center Coax RG-59 wire.
