Outland Technology OTI-ROV-500 ROV Model 500

SKU
OTI-ROV-500

List Price: $39,995.00

$37,795.28

Outland Technology ROV Model 500 OTI-ROV-500 is half the size of the Outland ROV-1000, this model is a standout addition to our product line. The ROV-500 comes with a smaller frame that allows for access into smaller spaces while maintaining a high thrust to weight ratio.

Restrictions / Notifications

  • No Free Shipping
    This item does not qualify for free shipping.
  • Export License Required
    This item is restricted to sales within the United States and cannot be exported without an export license.
  • Non-Returnable/Non-Cancelable
    This item cannot be canceled or returned once an order has been placed.
More Information

Features:

  • Fits thru small openings
  • Excellent transportability
  • High thrust to weight ratio
  • Turnkey operation
  • 24/7 in water operation (NO BATTERIES)
  • 1,000 ft (300m) Depth
  • Light Weight
  • Compatible with existing Outland ROV Systems
  • Works with many Sonar and Sensors

Specifications:

Vehicle (ROV-500)

  • The ROV contains the following:
    • (1) Single function manipulator
    • (2) High-Powered LED Lights 3000 lumens total (1500 lumens each)
    • (1) Tilting Color 1080p Video Camera
    • (4) 350W Brushless, Flooded Thrusters
  • Mechanical:
    • Dimensions: 20” L x 12-1/4” W x 10-1/2” H excluding Manipulator (51 x 31 x 27 cm)
    • Weight in air: 21 lbs. (9.5 kg)
    • Payload Capacity 3 lbs. (1.3 kg)
    • Depth Rating 1000 ft. (300 m)
    • Thrust (per thruster) 0-11 lbs. (variable)
  • Electrical:
    • Input Power to vehicle 160 to 400 VDC at 1kW max

Cable (C-3400)

  • Mechanical:
    • Size: 0.55 in (14 mm) dia. x (330) ft. (100 m) long
    • Working Load: 230 lbs. (104 kg)
    • Jacket: Green Polyurethane
    • Weight in Seawater: Neutral
    • Dry Weight: .33 lbs. (15 kg) per 330 ft
  • Electrical:
    • CAT5E 4 Twisted Pair; #24 AWG
    • Conductors 500volt, 12 ea. #22 AWG

Control Console (CON-500)

  • Mechanical:
    • Size 18.5” W x 7.5” H x 14.5” D (47 x 19 x 37 cm)
    • Weight 33 lbs. (15 kg)
  • Electrical:
    • Input Voltage: 100-240 VAC (50/60 Hz)
    • Input Power: 1.5kW (MAX)
    • Power Out to ROV: 330 VDC @ 3.6 amps (MAX)
    • Includes: Video Overlay, Time/Date, Depth, Heading, Text.
    • Includes: 15”, 2000 nit, LCD monitor, and SD/HD 4ch digital video recorder

Hand Controler (HC-2000)

  • Mechanical:
    • Size: 9” W x 5” D x 4.5” H (23 x 13 x 11 cm)
    • Weight: 1.7 lbs. (0.8 kg)
  • Electrical:
    • Input Voltage (from CON-500): 12 VDC
    • Control data to Vehicle: RS-485

Options:

  • Compatible with many Sonar, Tooling, Sensors and other device types.
  • Standard Spares package includes spare thruster
Features
  • Fits through small openings.
  • Lightweight and excellent transportability.
  • High thrust to weight ratio.
  • Turnkey operation.
  • 24/7 in water operation.
  • Compatible with sonar, tooling, sensors and other device types.
  • Standard spares package includes spare thruster.
  • NOTE: Does NOT come with batteries.

Specifications
  • Depth: 1,000 ft (300 m)
  • Compatible with existing Outland ROV systems and many sonar and sensors.

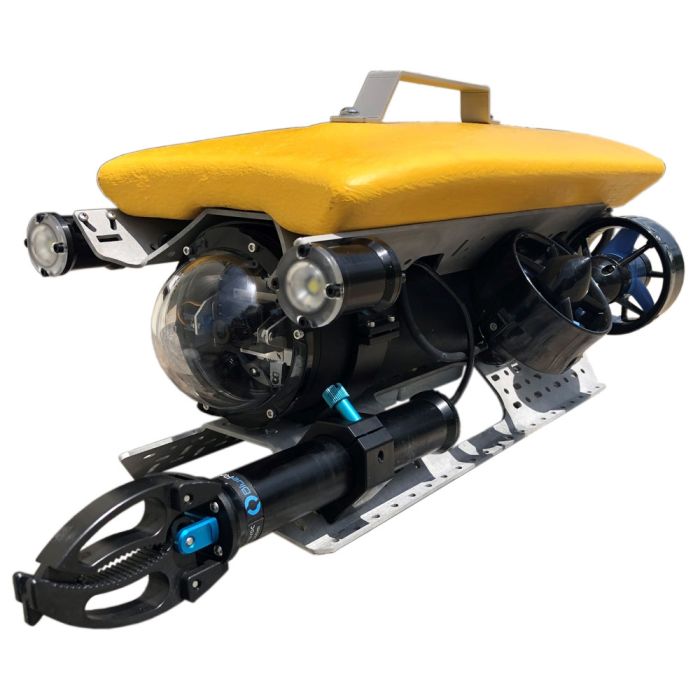

Vehicle (ROV-500)
  • ROV contains the following:
    • (1) Single function manipulator
    • (2) High-powered LED lights 3000 lumens total (1500 lumens each)
    • (1) Tilting color 1080p video camera
    • (4) 350W brushless, flooded thrusters
  • Mechanical:
    • Dimensions: 20 in. L x 12-1/4 in. W x 10-1/2 in. H excluding manipulator (51 cm x 31 cm x 27 cm)
    • Weight in Air: 21 lbs. (9.5 kg)
    • Payload Capacity: 3 lbs. (1.3 kg)
    • Depth Rating: 1000 ft. (300 m)
    • Thrust (Per Thruster): 0-11 lbs. (variable)
  • Electrical:
    • Input power to vehicle 160 to 400 VDC at 1kW max

Cable (C-3400)
  • Mechanical:
    • Size: 0.55 in. (14 mm) dia. x 330 ft. (100 m) long
    • Working Load: 230 lbs. (104 kg)
    • Jacket: Green polyurethane
    • Weight in Seawater: Neutral
    • Dry Weight: .33 lbs. (15 kg) per 330 ft.
  • Electrical:
    • CAT5E 4 twisted pair; #24 AWG
    • Conductors 500 volt; 12 ea. #22 AWG

Control Console (CON-500)
  • Mechanical:
    • Size: 18.5 in. W x 7.5 in. H x 14.5 in. D (47 cm x 19 cm x 37 cm)
    • Weight: 33 lbs. (15 kg)
  • Electrical:
    • Input Voltage: 100-240 VAC (50/60 Hz)
    • Input Power: 1.5kW (MAX)
    • Power Out to ROV: 330 VDC @ 3.6 amps (max)
    • Includes: Video overlay, time/date, depth, 15 in. 2000 nit, LCD monitor, and SD/HD 4ch digital video recorder

Hand Controller (HC-2000)
  • Mechanical:
    • Size: 9 in. W x 5 in. D x 4.5 in. H (23 cm x 13 cm x 11 cm)
    • Weight: 1.7 lbs. (0.8 kg)
  • Electrical:
    • Input Voltage (from CON-500): 12 VDC
    • Control Data to Vehicle: RS-485

Outland Technology ROV Model 500 OTI-ROV-500 is half the size of the Outland ROV-1000, this model is a standout addition to our product line. The ROV-500 comes with a smaller frame that allows for access into smaller spaces while maintaining a high thrust to weight ratio.



This model uses the standard hand controller. The hand controller includes depth, heading (compass or gyro), cruise controls, and an option for altimeter depth control. The ROV-500 comes with a single function manipulator as a standard feature. There is also an option to show CP contact or proximity readings on the screen.



ROV-500 comes with dual LED lights, tilting high definition front camera, depth sensor, compass, gyro, 330 ft. (100 m) neutrally buoyant tether, mission-oriented hand controller and portable control console. Available options include sonars, external cameras, altimeter are more.
