Outland Technology Complete Portable High Definition Dual Diver Video System with Amron Radio

Features:

• Complete Dual Diver HD Video System
• Built-in Amron Communicator with Speaker
• Compact HD Camera
• LED Light (2500 Lumens)
• 1TB HDD DVR with video overlay built-in
• Backwards compatible with older SD cameras

Specifications:

• Model UWS-330/P Camera

  • MECHANICAL:
    • Diameter: 1.62 in. (41 mm)
    • Length (excluding connector): 5 in. (127 mm)
    • Weight in Air: 9.8 oz. (0.28 kg)
    • Weight in Seawater: 3.1 oz. (0.09 kg)
    • Depth Rating: 6560 ft. (2000 m)
    • Housing Material: Delrin
    • Port Material: Acrylic
  • CAMERA PROPERTIES:

    • Image Device: 1/2 in. Sony Sensor
    • Sensitivity: 0.017 lux
    • Resolution: 1080P
    • Lens: 3.6 mm, F2.0
    • Focus: Fixed
    • Horizontal FOV (in water): 80°
    • Standard Form: NTSC
• Model UWL-401 Light
  • MECHANICAL:
    • Weight in Air: 0.48 lbs. (0.22 kg)
    • Weight in Seawater: 0.18 lbs. (0.08 kg)
    • Depth Rating: 6560 ft. (2000 m)
    • Housing Material: Anodized Aluminum
  • ELECTRICAL:
    • Input Voltage: 24 VDC
    • Power: 20 watts
  • LIGHT PROPERTIES:
    • Light Output: 1100 lux @ 1 m (2500 lumens) @ 3000 K
• Model C-2303 Cable
  • MECHANICAL:
    • Length: 500 ft. (150m) Standard
    • Diameter: 0.35 in. (8.9 mm)
    • Jacket: Polyurethane (orange)
    • Breaking Strength: 1200 lbs. (540 kg)
  • ELECTRICAL:
    • Conductors: 16 ea. #22 awg; 1 RG-59 Coax
• Model CON-3700/D Console
  • MECHANICAL:
    • Size: 18.5 in. W x 14.5 in. D x 8 in. D (7.3 x 5.7 x 3.15 cm)
    • Weight: 35 lbs. (16 kg)
  • ELECTRICAL:
    • Power: 110-240 VAC; 50/60Hz.; 350 watts max
    • Light Control: Variable control 0-100%.
    • Monitor: 15 in. ~1600nit, 16:9 HD LCD Color with audio.
    • Safety: Low voltage output to Diver
    • Connections: Front panel connections for umbilicals
    • Recorder: High Definition 1TB HDD DVR (standard on all consoles)

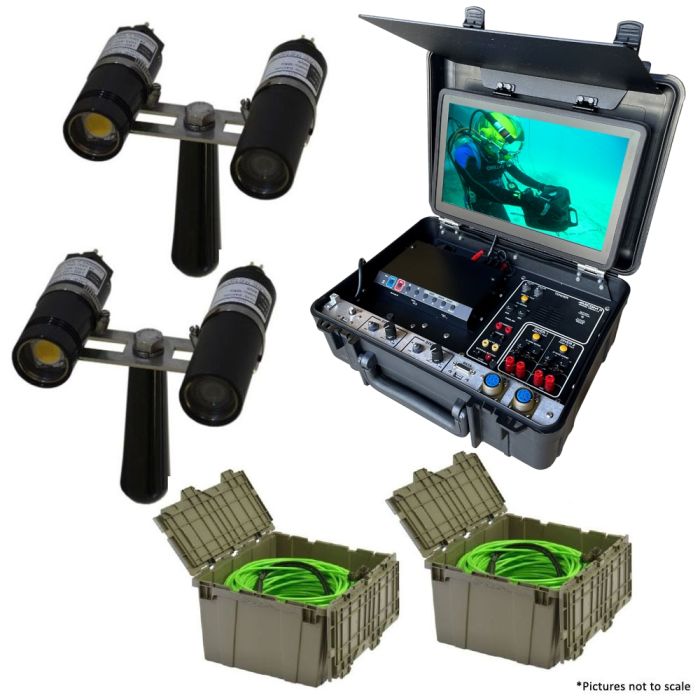

Complete High Definition Dual Diver Video System with Amron Radio P/N: OTI-UWS-3710/D Includes:

• (2) HD 1080P Camera - P/N: UWC-330/P
• (2) LED light - P/N: UWL-401
• (2) Bracket - P/N: DHM-60
• (2) 500 ft. cable - P/N: C-2303
• (1) 15 in. 16:9 HD Monitor, HDD Recorder, Power Supply with variable light control. All mounted in a weather-resistant shipping case - P/N: CON-3500/D
• (1) User Manual

Features

• Complete dual diver HD video system
• Built-in Amron communicator with speaker
• Compact HD camera
• LED light (2500 lumens)
• 1 TB HDD DVR with video overlay built-in
• Backwards compatible with older SD cameras

Model UWS-330/P Camera Specifications

• Mechanical:
  • Diameter: 1.62 in. (41 mm)
  • Length (Excluding Connector): 5 in. (127 mm)
  • Weight in Air: 9.8 oz. (0.28 kg)
  • Weight in Seawater: 3.1 oz. (0.09 kg)
  • Depth Rating: 6560 ft. (2000 m)
  • Housing Material: Delrin
  • Port Material: Acrylic
• Camera Properties:

  • Image Device: 1/2 in. Sony sensor
  • Sensitivity: 0.017 lux
  • Resolution: 1080P
  • Lens: 3.6 mm, F2.0
  • Focus: Fixed
  • Horizontal FOV (in Water): 80°
  • Standard Form: NTSC

Model UWL-401 Light Specifications

• Mechanical:
  • Weight in Air: 0.48 lbs. (0.22 kg)
  • Weight in Seawater: 0.18 lbs. (0.08 kg)
  • Depth Rating: 6560 ft. (2000 m)
  • Housing Material: Anodized aluminum
• Electrical:
  • Input Voltage: 24 VDC
  • Power: 20 watts
• Light Properties:
  • Light Output: 1100 lux @ 1 m (2500 lumens) @ 3000 K

Model C-2303 Cable Specifications

• Mechanical:
  • Length: 500 ft. (150 m) standard
  • Diameter: 0.35 in. (8.9 mm)
  • Jacket: Polyurethane (orange)
  • Breaking Strength: 1200 lbs. (540 kg)
• Electrical:
  • Conductors: 16 ea. #22 awg; 1 RG-59 coax

Model CON-3700/D Console Specifications

• Mechanical:
  • Size: 18.5 in. W x 14.5 in. D x 8 in. D (7.3 x 5.7 x 3.15 cm)
  • Weight: 35 lbs. (16 kg)
• Electrical:
  • Power: 110-240 VAC; 50/60Hz.; 350 watts max
  • Light Control: Variable control 0-100%.
  • Monitor: 15 in. ~1600nit, 16:9 HD LCD color with audio
  • Safety: Low voltage output to diver
  • Connections: Front panel connections for umbilicals
  • Recorder: High definition 1 TB HDD DVR (standard on all consoles)

Complete High Definition Dual Diver Video System with Amron Radio P/N: OTI-UWS-3710/D Includes

• (2) HD 1080P Camera - P/N: UWC-330/P
• (2) LED light - P/N: UWL-401
• (2) Bracket - P/N: DHM-60
• (2) 500 ft. cable - P/N: C-2303
• (1) 15 in. 16:9 HD Monitor, HDD Recorder, Power Supply with variable light control. All mounted in a weather-resistant shipping case - P/N: CON-3500/D
• (1) User Manual
