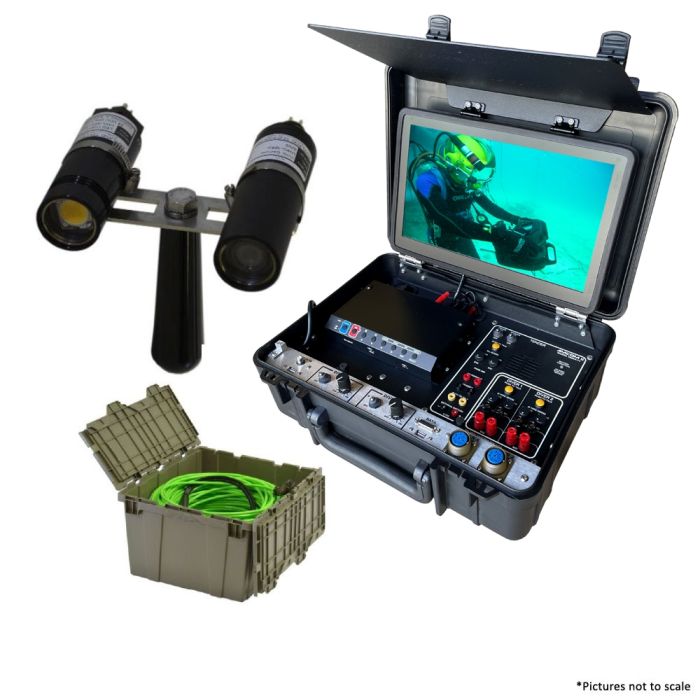

Outland Technology Complete High Definition HD Single Diver Video System w/ Amron Radio OTI-UWS-3710

This is a single diver high definition HD (1080p) camera system with a built-in Amron communicator. The CON-3700 console is the same as the high end dual diver and dual radio console and includes a single camera, light, cable, and bracket.

Features:

• Complete single diver HD video system
• Built-in Amron communicator with speaker
• Compact HD camera
• LED light (2,500 lumens)
• 1 TB HDD DVR with built-in overlay
• Backward compatible with older SD cameras

Standard System Includes:

• UWC-330/P: HD 1080p camera (quantity: 1)
• UWL-401: LED light (quantity: 1)
• DHM-60: Bracket (quantity: 1)
• C-2303: 500 ft. cable (quantity: 1)
• Radio communications cable NOT included
• CON-3700/D:
  • 15 in. 16:9 HD monitor
  • HDD recorder
  • Power supply with variable light control & built-in Amron communicator with speaker
  • All mounted in a weather-resistant shipping case

Specifications:

• Camera: Model UWC-330/P
  • Mechanical:
    • Diameter: 1.62 in. (41 mm)
    • Length (excluding connector): 5 in. (127 mm)
    • Weight in Air: 0.63 lbs. (0.28 kg)
    • Weight in Seawater: 3.1 oz. (0.09 kg)
    • Depth Rating: 6,560 ft. (2,000 m)
    • Housing Material: Delrin
    • Port Material: Acrylic
  • Camera Properties:
    • Image Device: .5 in. Sony sensor
    • Sensitivity: 0.017 lux
    • Resolution: 1080p
    • Lens: 3.6 mm, F2.0
    • Focus: Fixed
    • Horizontal FOV (in Water): ~80°
    • Standard Form: NTSC

• Light: Model UWL-401
  • Mechanical:
    • Weight in Air: 0.48 lbs. (0.22 kg)
    • Weight in Seawater: 0.18 lbs. (0.08 kg)
    • Depth Rating 6,560 ft. (2,000 m)
    • Housing Material: Anodized aluminum
  • Electrical:
    • Input Voltage: 24 VDC
    • Power: 20 watts
  • Light Properties:
    • Light Output: 1,100 lux @ 1 m (2,500 lumens) @ 3,000 K

• Cable: Model UWL-401
  • Mechanical:
    • Weight in Air: 0.48 lbs. (0.22 kg)
    • Weight in Seawater: 0.18 lbs. (0.08 kg)
    • Depth Rating: 6,560 ft. (2,000 m)
    • Housing Material: Anodized aluminum
  • Electrical:
    • Input Voltage: 24 VDC
    • Power: 20 watts
  • Light Properties:
    • Light Output: 1,100 lux @ 1 m (2,500 lumens) @ 3,000 K
• Console: Model CON-3700/D
  • Mechanical:
    • Size: 18.5 in. W x 14.5 in. D x 8 in. H (7.3 cm x 5.7 cm x 3.15 cm)
    • Weight: 35 lbs. (16 kg)
  • Electrical:
    • Power: 110-240 VAC; 50/60 Hz.; 350 W max
    • Light Control: Variable control 0-100%.
    • Monitor: 15 in. ~1600nit, 16:9 HD LCD color w/audio
    • Safety: Low voltage output to diver
    • Connections: Front panel connections for umbilicals
    • Recorder: High definition 1 TB HDD DVR

• Options:
  • Camera:
    • Stainless steel camera housing (UWC-330/SS)
    • Pal video format (/E)
    • Optional connectors
  • Cable:
    • User-specified cable lengths (standard lengths: 330 ft. & 500 ft.)
    • C-2304 Cable (Replaceable whip at diver)
  • Bracket: HM-300 helmet mount
  • Light: UWL-400 LED light
    • 2,200 lux @ 1m (5,000 lumens) @ 3,000 K 36 watts
  • Console:
    • Smart camera controller with dive timer (6200)
    • Tender headset (Amron 2401-28)
    • DC option (/DC) 300W true sign wave inverter
