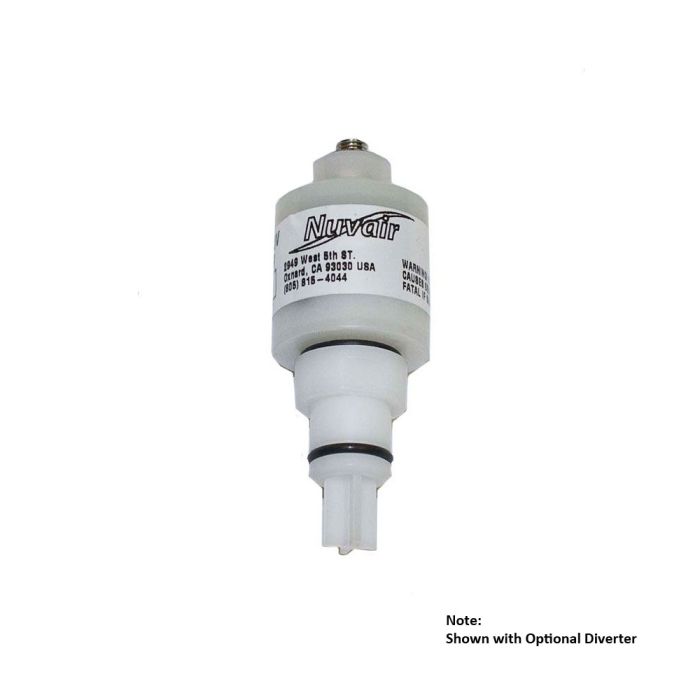

Nuvair NUV-9506 Remote Oxygen Sensor Replacement with Remote Jack Plug 25MV

The Nuvair 9506 is a remote, inline replacement electrochemical oxygen sensor for gas analyzers. Under normal use, oxygen sensors have an expected service life of 36 months. The 9506 replacement sensor fits the following analyzers:

• Nuvair Pro O₂ Remote - Handheld (SKU 9452)
• Nuvair Pro O₂ Remote - Panel Mount (SKU 9460)

Application:

• For surface/above water in-line gas oxygen analysis; not intended for underwater use.

Specifications:

• Output: 25±2 mV in air at 25°C/77°F, sea level
• Electrical Connector: Typical mating plug switchcraft: .141" (3.5mm) miniature phone plugs - screw or clamp-lug terminal Polarity: Tip = negative (–), Sleeve = positive (+)
• Range: 0-100% Oxygen
• Accuracy: ±1% of full scale at constant temperature and pressure (0-1 atm) when calibrated with 100% oxygen
• Sensor Type: Electrochemical
• Expected Sensor Life: 36 months in air at 25° C/77°F and 50% rh
• Response Time: <6 seconds for 90% of final value
• Operating Temperature: 32-104°F (0-40°C)
• Storage Temperature: 32-122°F (0-50°C)
• Humidity: 0-99% rh (non-condensing)
• Weight: 1.1 oz (31 g)

Note: Never expose gas sensors to pressure or you may cause damage and/or false readings. Damaged sensors will not provide accurate gas analysis. Inaccurate gas analysis can lead to serious personal injury or death. Most gas analyzers can be used to analyze a regulated gas sample flow, the contents of a gas cylinder, or the flow from a regulator. The flow rate of gas must equal 1-5 L/min. To produce this flow, a Flow Restrictor and Regulator may be required.
