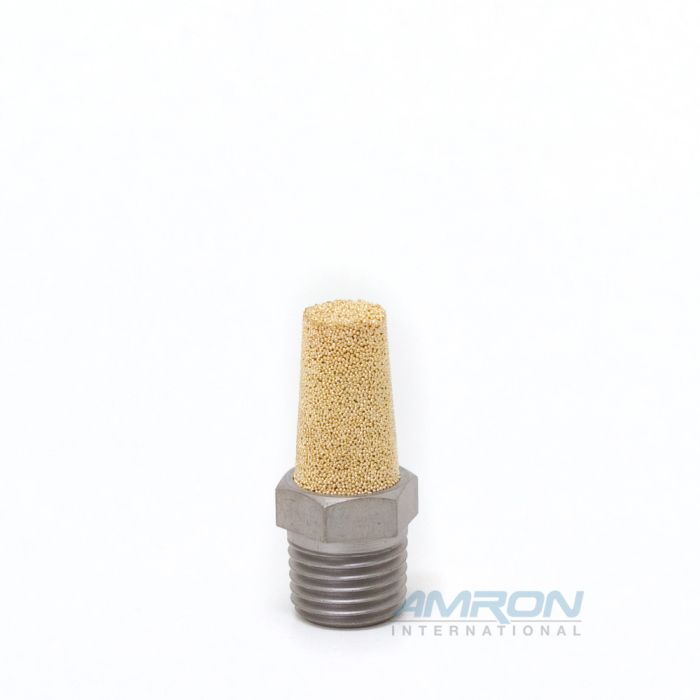

Norgren MS002A Quietaire Sintered Bronze Muffler 1/4 in. MNPT

SKU

MS002A

Quietaire Sintered Type Mufflers include cleanable 40-micron diffuser elements, compact design, and corrosion resistant construction.

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.
CA PROP65
Warning: Cancer and Reproductive Harm www.p65warnings.ca.gov
Contact us for a quote: Call (877) 462-6700 or email sales@amronintl.com.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

Part No. NPT Model

Port Size NPT

Flow Factor Cv

Dimensions
Hex	Length

MS000A*

10-32

5-1/6

0.70 (18)

MS001A

1/8

0.7

7/16

1.13 (29)

MS002A

1/4

1.4

9/16

1.38 (35)

MS003A

3/8

1.9

11/16

1.50 (38)

MS004A

1/2

3.8

7/8

1.88 (48)

MS006A

3/4

6.5

1-1/16

2.25 (57)

MS008A

10.5

1-5/16

2.88 (73)

MS010A

1-1/4

11.8

1-11/16

3.25 (83)

MS012A

1-1/2

18.3

3.69 (94)

*Furnished with gasket

BSPT and BSPP Threads are optional. For those corresponding part numbers please refer to the Manufactures Technical Specifications located in the "Documents Tab" above on this web page. Please contact Amron International to inquire about these items and to receive a quote.

Information

Sintered Type Bronze Mufflers include cleanable 40-micron diffuser elements, compact design, and corrosion resistant construction. They reduce the noise levels of pneumatic equipment, screw directly into the exhaust port and prevent the ingress of dirt.
