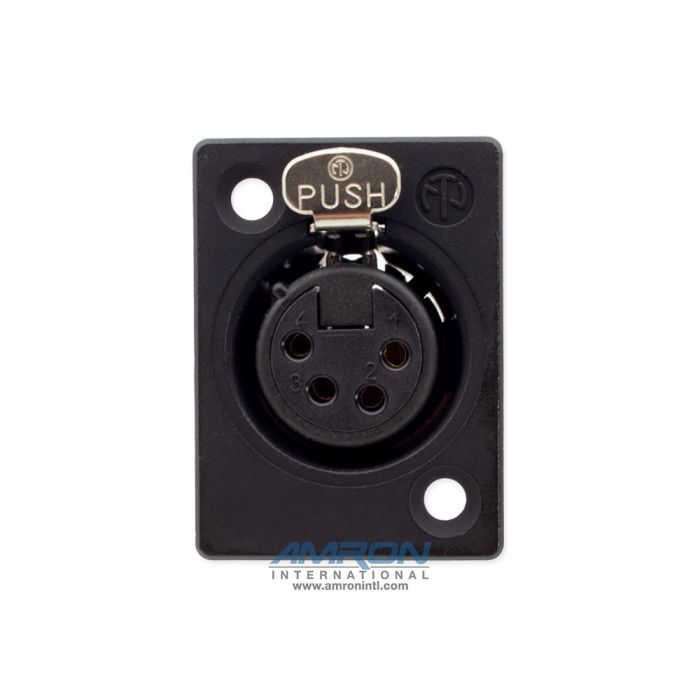

- Neutrik Headset Jack 4 Pin Male Female Used 31XX Chamber CommBoxes

SHIP NOW
SKU
NC4FP-1-B
$6.79
Eligible for Free Shipping Over $125
Neutrik's Headset Jack 4 Pin Male Female Used 31XX Chamber CommBoxes NC4FP-1-B features 4 pole female receptacle, solder contacts, black metal housing, gold contacts. Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.
More Information

Features:

  • Smallest available hard wiring receptacles with large solder cups.
  • Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32.
  • Short female receptacle.

Specifications:

  • Connection Type: XLR
  • Gender: Female

Electrical:

  • Capacitance Between Contacts: ≤ 7 pF
  • Contact Resistance: ≤ 5 mΩ
  • Dielectric Strength: 1,5 kVdc
  • Insulation Resistance: > 10 GΩ (initial)
  • Rated Current Per Contact: 10 A
  • Rated Voltage: < 50 V

Mechanical:

  • Insertion Force: ≤ 20 N
  • Withdrawal Force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: Max. 1.5 mm²
  • Wiresize: Max. 16 AWG
  • Wiring: Solder contacts
  • Locking Device: Latch lock
  • Mounting Direction: Front mounting
  • Chassis Shape: P

Material:

  • Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA66)
  • Locking Element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Black chromium

 Environmental:

  • Flammability: UL 94 V-0
  • Standard Compliance: IEC 61076-2-103
  • Protection Class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -30 °C to +80 °C
Neutrik's Headset Jack 4 Pin Male Female Used 31XX Chamber CommBoxes NC4FP-1-B features 4 pole female receptacle, solder contacts, black metal housing, gold contacts. Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.
