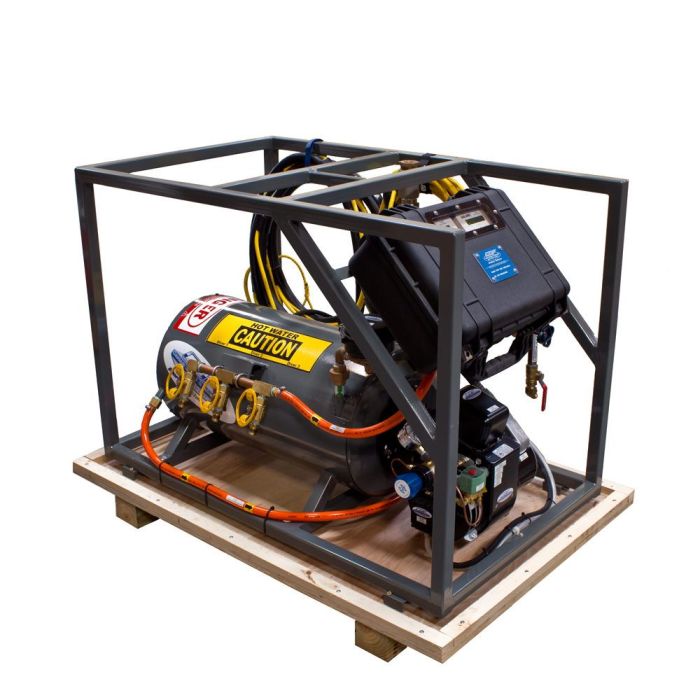

Monkey Heater Hot Water Heater 120V / 60 Hz

Only %1 left

SKU

CDF-PWH-100/3-XSCOIL

As low as $13,444.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features Two adjustable digital thermostats Temperature and pressure relief valve located at the coil discharge Electric valve on water supply to allow safe operation when using an external water supply Audible/visual alarm All components are located inside watertight conduits Flow switch Delayed firing on the burner Twist lock plug on the pump Switched pump outlet on the control panel Mushroom safety on-off switch located on the control box exterior Burner isolation switch Bypass switch Electric valve bypass switch Stainless steel submersible pump 12 stage (25-ft. umbilical standard) Switched pump power supply outlet 350,000 BTU Diesel fuel fired burner Fuel pressure fine adjustment regulator Detachable fuel tank (25 gallon wheeled or 15 gallons) No mixing tank required Braided stainless steel manifold hoses All brass plumbing All components are wired through terminal blocks for easy service No anti-freeze needed (steam evacuation valve located on coil discharge) Optional drip pan, stainless steel cover, chimney kit, fabric cover Exclusive gun stop plate Remote switch panel available Hour meter Wheel kits for maintenance are available Specifications Coil Material Options: 1/2 in. stainless steel coil 1/2 in. carbon steel coil Weight & Dimensions: Weight Standard Unit: 325 lbs. (147.50 kg) Length: 46 in. (1168.5 mm) Width: 27 in. (686 mm) Height: 32 in. (813 mm) 14-gauge frame, double powder coated 120V / 60 Hz 50-ft. 10/3 power cord

Information

The model 100/3 has been manufactured and Navy approved since 1985. Two thermostats are incorporated for added safety. This system includes flow switches and an electric valve to shut the water off to the diver should the temperature exceed the operator's set parameters. All systems include a stainless steel supply pump. Also, an audible/visual alarm is added for additional safety.

NOTE: This unit does not require a mixing tank.
