- BT3-ASSY Three Stage Breathing Air Filtration System

SKU

BT3-ASSY

FILTER SYSTEM; THREE-STAGE ASSEMBLY; AUTO AND MANUAL

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.
Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
Contact us for a quote: Call (877) 462-6700 or email sales@amronintl.com.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features: Model BT3 Filtration System Three (3) Canister Assemblies Made of Powder-Coated Die Cast Aluminum with 1 inch Flow Ports First Stage - Particulate (5 Micron) Second Stage - Oil Removal Third Stage - Vapor and Odor Brass Fittings Stainless Steel Hardware Stainless Steel Gauges Assembly Mounted in Aluminum Frame Unit is Shipped Ready to Use with #10 JIC Male Fittings on the Inlet and Outlet Valves Standard Unit Specifications: Two (2) Inlets & Two (2) Outlets Four (4) 1/2 inch Brass Ball Valves Two (2) Inlet/Outlet Gauges - 0-300 Stainless Steel Housing Four (4) #10 JIC Male Hose Adapters Brass Plumbing Stainless Steel Hardware Weight: 32 pounds Length: 30 inches Width: 12 inches Height: 16 inches Element Specifications: First Stage: Particulate (5 micron) (P/N: 5311-01) Second Stage: Oil Removal (P/N: 5351-03) Third Stage: Vapor and Odor (P/N: 665-70)

Information

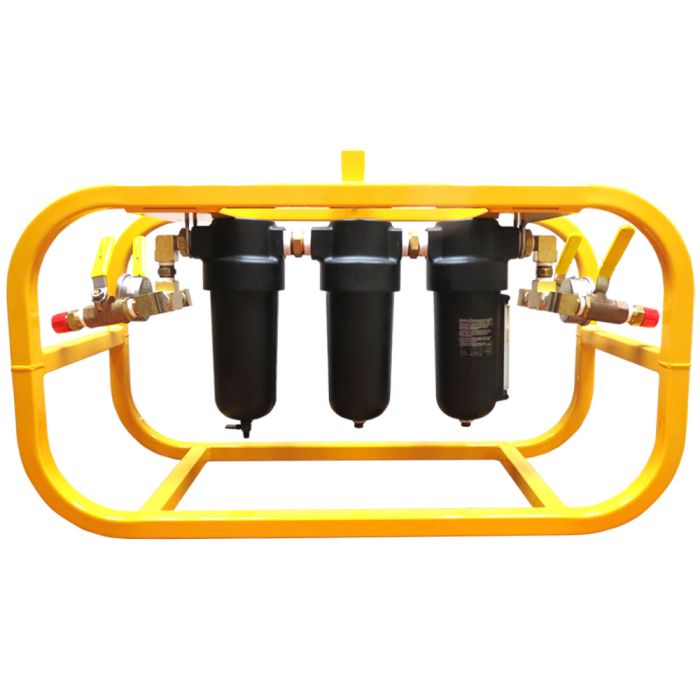

The Model BT3 filtration system consists of three canister assemblies. The canisters are made of powder-coated die cast aluminum with 1 inch flow ports. The first and second stage canisters are fitted with auto drains and the third has a manual drain. The unit is plumbed with brass fittings, stainless steel hardware and stainless steel gauges. The assembly is mounted in an aluminum frame. The unit is shipped ready to use with #10 JIC male fittings on the inlet and outlet valves.BT3-ASSY
