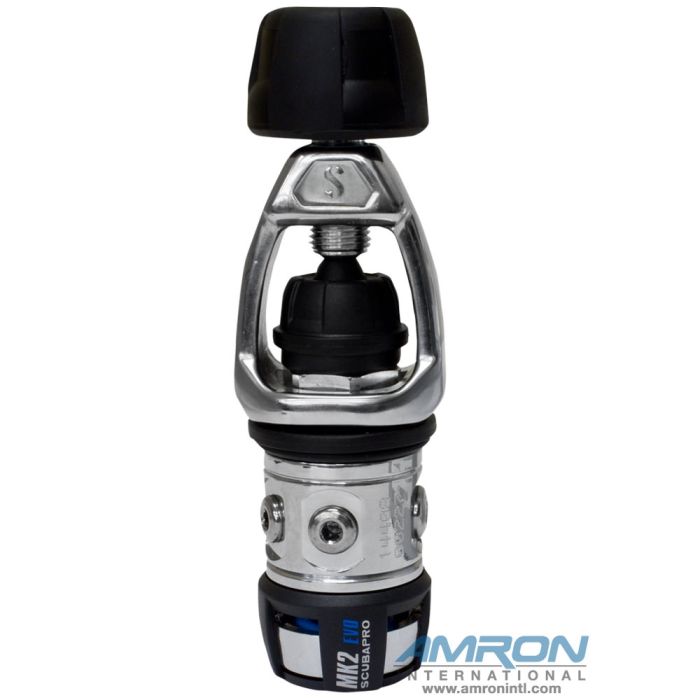

SCUBAPRO MK 2 EVO 1st Stage Regulator 10.063.X00

SCUBAPRO MK 2 EVO first stage regulators are available with different tank valve connections:

• YOKE (INT): this international connection is composed of a yoke and screw and can be used up to 230 bars, according to the ISO norm.
• DIN: uses a threaded connection complying with ISO 12209-2 norm (200 or 300 bars).

Features:

• Standard piston features minimum moving parts to control the pressure drop from a tank to feed the second stage translates to high reliability and durability, combined with minimal maintenance requirements.
• The XTIS system (Extended Thermal Insulating System) thermally insulates the regulator’s mechanism against the extreme cold generated inside the first stage expansion area working to prevent ice from forming around the moving parts, allowing them to operate correctly under all conditions.
• The availability of 4 or 5 (IP) intermediate pressure ports enables the connection of equipment such as an octopus second stage, buoyancy compensator, dry suit hose or other accessories.
• All first stages are equipped with at least one (HP) high pressure port. More sophisticated first stages are equipped with two high pressure ports, allowing a submersible pressure gauge, computer hose or transmitter to be positioned on the right or left side of the diver according to preference and/or correct transmitter orientation.

Specifications:

• Piston: Classic downstream
• Material: Chrome plated brass body
• Cold Water: XTIS antifreeze system
• Ports:
  • Intermediate Pressure (IP) Ports: 4
  • High Pressure (HP) Port: 1
• Weight:
  • INT: 670 g / 23.6 oz.
  • DIN 300: 450 g / 15.9 oz.
• Air Flow: 200 bar (l/min / SCFM): 3000 / 106
• Intermediate Pressure: 230 bar / 3336 psi (bar / psi): 9.5 - 10 / 138-145
• Configuration Options:
  • INT: 230 bar (3336 psi)
  • DIN: 300 bar (4351 psi)
