Approved Vendor Micro Wet Dummy Connector Male 8 Pin Plug

Name: Approved Vendor Micro Wet Dummy Connector Male 8 Pin Plug
Brand: Approved Vendor
SKU: MCDC8M
Price: 55.27 USD
Availability: InStock

SHIP NOW

SKU

MCDC8M

$55.27

MCDC8M Micro Wet Dummy Connector Male 8 Pin Plug

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Applications Underwater camera and lights (video system) Diver communications ROV systems Submersibles Towed-array cable systems Current meters Animal migration research Food processing equipment Specifications Molded Body: Neoprene Bulkhead Body: Brass Contacts: Brass-gold plated Guide Pins: Stainless steel Open Face Pressure: 10,000 psi (approx. 689 bar) optional and needs to be specified; dummy cap recommended above 100 psi Mated Pressure: 10,000 psi (approx. 689 bar) Insulation Resistance: >200 MΩ @ 300 VDC Contact Resistance: <0.01 Ω Air Mate: >1,000 cycles Underwater Mate: >500 Operating Temperature: 25 °F to 140 °F (-4 °C to 60°C) Mates with: MCIL8F and MCBH8F Connector Pins: 8 Length: 4.45 in. DISCLAIMER NOTICE: Amron reserves the option to supply this style from multiple manufacturers. If you prefer a particular manufacturer, please let your salesperson know before ordering.

Information

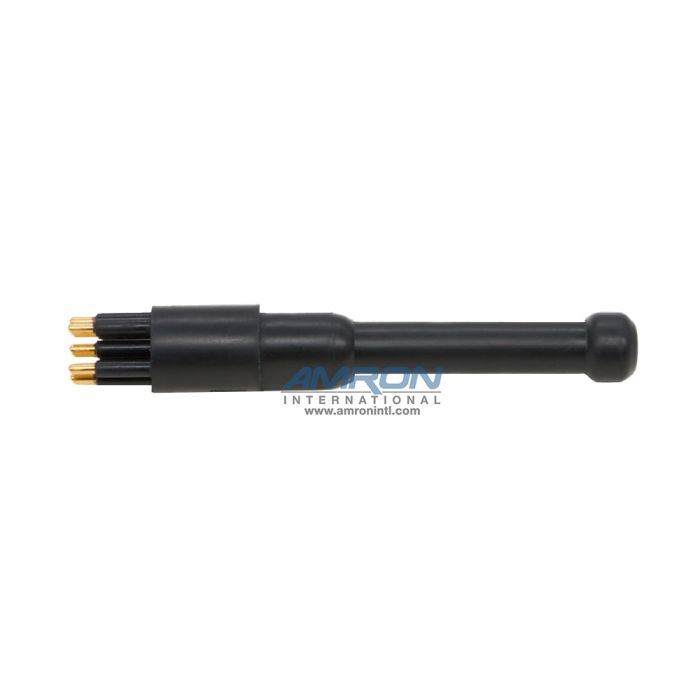

The MCDC8M Micro Wet Dummy Connector Male 8 Pin Plug, made of neoprene, brass-gold plated, and stainless steel, can be used for underwater cameras, lights, and video systems and diver communications.
