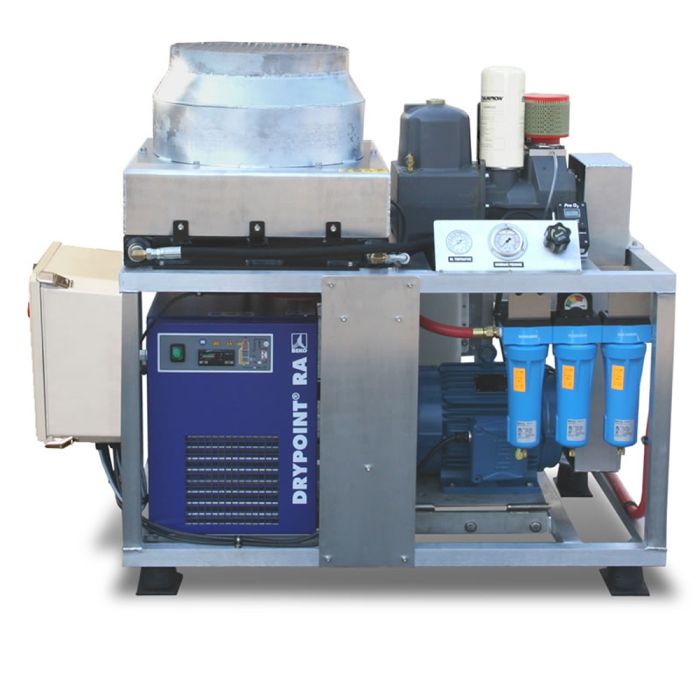

Nuvair LP 600 Air Cooled LP Marine Nitrox Generator

The air cooled low-pressure (LP) Marine Nitrox Generator uses a rotary screw compressor to produce low pressure oxygen-rich air (nitrox) for delivery to a high-pressure (HP) compressor for scuba tanks or storage cylinder fills in high demand applications. Its compact size, low amp draw on start-up, and marine grade aluminum frame make it ideal for below deck installations in hot engine rooms.

Features:

• Air cooled
• Nitrox membrane system with (2) O2 analyzers
• Membrane system mounted to frame
• CompAir EK76 rotary screw compressor
• Hankison LP filtration for membrane system
• Refrigerated air dryer for long filter life
• Manual BP regulator control for O2% adjustment
• Automatic condensate drains
• Automatic shutdown for high pressure and high temperature
• Compressor pressure is modulation controlled
• Marine grade aluminum frame with stainless steel motor plate
• Soft start
• Flange for connecting ducting to remove hot air
• Supply LP nitrox containing up to 40% oxygen
• Systems to fit most HP compressors
• Soft start for reduced amperage draw on start

Specifications:

• Dimensions (L x W x H): 27 in. x 41.5 in. x 40.5 in. (68.6 cm x 105 cm x 103 cm)
• Weight (not including membrane): 740 lb. (335 kg)
• Horsepower: 20 hp (15 kW)
• 208-230 V / E3 / 60 Hz*: 63 A
• LP Compressor Capacity @ 175 psi: 57 CFM (1614 L/min)
• Membrane Input
  • Operating Pressure: 100 psi -175 psi (7-12 bar)
  • Optimum Temperature: 110 °F ± 5 °F (43 °C ± 3 °C)
• Rated to Supply
  • FAD for 40% O₂ : 21 CFM (600 L/min)
  • FAD for 36% O₂ : 26.5 CFM (750 L/min)
  • FAD for 32% O₂ : 36 CFM (1018 L/min)
