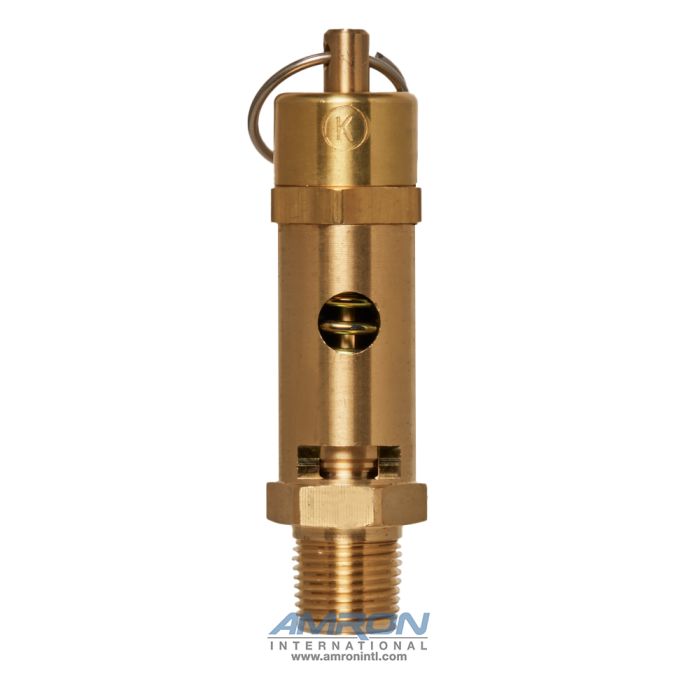

Kingston Valves ASME Code Safety Valve Brass 3/8in. NPT, SS Ball, High Flow

• Every relief valve is set and tested at the factory
• Heavy-duty construction for lasting performance
• High flow rate
• Pop-style relief valve
• Precision machined for smooth operation
• Precision machined hard seat
• Pull-ring for manual testing
• ASME Sec. VIII, Air/Gas UV stamp
• National Board Certified NB stamp
• Tested in National Board approved quality assurance process
• Registered in all Canadian provinces and territories, CRN #0G3144.1C

• Materials:
  • Body: Brass, ASTM B16
  • Seal: Vinyl
  • Stem: Brass
  • Ball: Stainless steel, 440C
  • Spring: Stainless steel
  • Adjusting Screw: Brass
  • Lock Nut: Brass
  • Cap: Brass
  • Pull Ring: Stainless steel
• Inlet Size: 3/8 in. NPT
• Orifice: 0.359
• Dimensions:
  • Height: 3-9/16 in.
  • Hex: 3/4 in.
• Approximate Ship Weight: 5 oz.
• Maximum Temperature: 400 °F
• Additional Set Pressure options are available from 25 to 300 psi (5 psi increments)

NOTE: There is a $150 minimum order requirement for Kingston Valve products. All Kingston Valves may be mixed and matched to achieve the minimum requirement.
