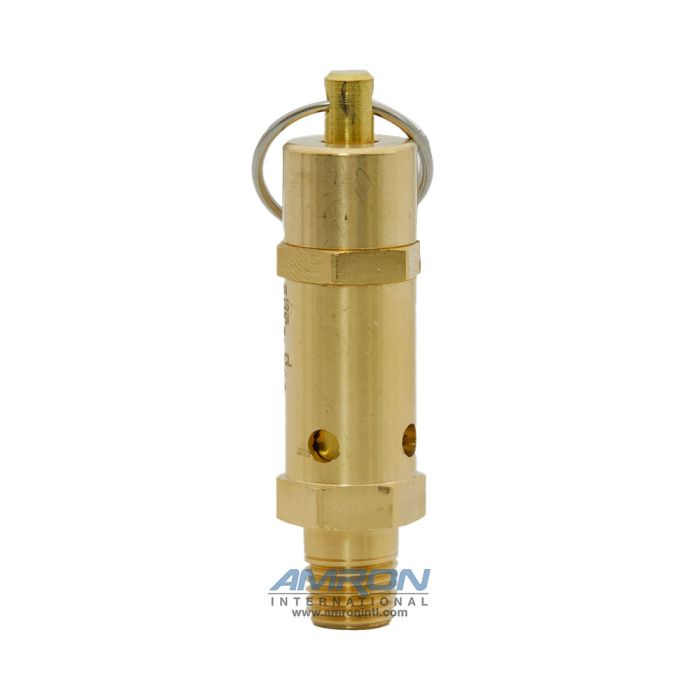

Kingston Valves ASME Code Safety Valve Brass 1/4in. SS Ball & Spring

Only %1 left

SKU

112CSS-2-X

As low as $19.53

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
CA PROP65
Warning: Cancer and Reproductive Harm www.p65warnings.ca.gov

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

Features

Precision machined hard seat
Stainless steel ball & spring
Pull ring for manual testing
ASME certified-stamped UV + NB
Registered in all Canadian provinces & territories

Specifications

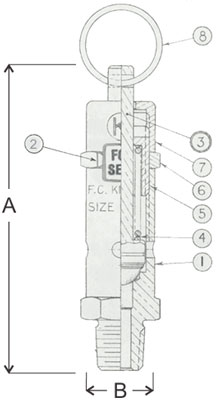

Model	Inlet Size	Orifice	Dimensions (Inches)		Set Pressure Range (PSIG)	Approx. Ship Wt.	Max Temp. (°F)
			Height (A)	Hex (B)
112CSS	1/4 in. NPT	0.25	3-1/8 in.	3/4 in.	25-300 PSIG	4 oz.	400 °F

Materials

No.	Part Name	Materials
1	Body	Brass
2	Seal	Vinyl
3	Stem Assembly	Brass Stem, Stainless Steel Ball
4	Spring	Stainless Steel
5	Adjusting Screw	Brass
6	Lock Nut	Brass
7	Cap	Brass
8	Pull Ring	Stainless Steel

NOTE: There is a $150 minimum order requirement for Kingston Valve products. All Kingston Valves may be mixed and matched to achieve the minimum requirement.

Information

The Kingston Model 112CSS Safety Valve is an ASME Code Certified, precision machined brass valve with a hard seat. This valve supports ASME Code applications up to 300 psi. It also features a stainless steel ball for durability and a pull ring for manual testing.

As Kingston’s most popular valve, it is suited for a wide variety of applications. Alternative versions to the Kingston Model 112CSS are available in electroless nickel plating, Model 112CSSEN and all Stainless Steel, Model 112CR. Any version of the Kingston Model 112C Series Safety Valve can be delivered with an ASME certified steam rating.

The Kingston Model 112CSS Safety Valve, like every Kingston Safety Valve, is set and tested at factory for quality and dependability. Registered in all Canadian provinces and territories. Set pressure range 25 to 300 psi. Operating Temperature Range: -20°F to 400°F (-29°C to 204°C).
