These bleed valves are designed to vent high pressure or condensate from charging lines, filters, separators and other volumes where pressure must be relieved to disconnect lines, tanks etc.
They have an exclusive seal design that permits opening and closing thousands of times without loss of sealing ability.
Light finger pressure is all that's required, however over torquing should not damage the valve.

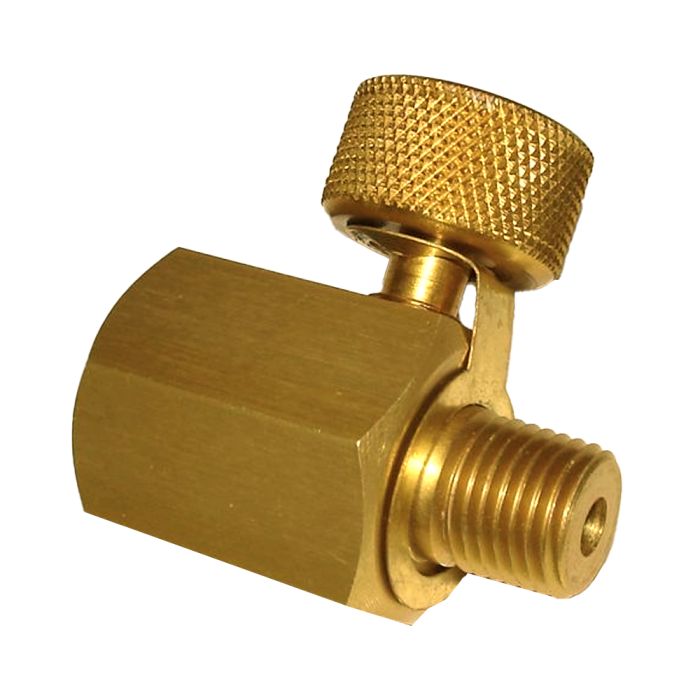

The model 712 has two connections, so is better suited for in line uses.
Specifications
Series Designation: 712 series
Type: In-line hand operated bleed valve
Hand Loaded/Operated or Dome/Air Operated: Hand operated
Maximum Rated Pressure: 6000 psi
Inlet Port Size: 1/4 in. FNPT - interchangeable with outlet port, functions same either direction
Outlet Port Size: 1/4 in. MNPT - interchangeable with inlet port, vents to atmosphere
These bleed valves are designed to vent high pressure or condensate from charging lines, filters, separators and other volumes where pressure must be relieved to disconnect lines, tanks etc. They have an exclusive seal design that permits opening and closing thousands of times without loss of sealing ability. Light finger pressure is all that's required, however over torquing should not damage the valve. The model 712 has two connections so is better suited for in line uses.
