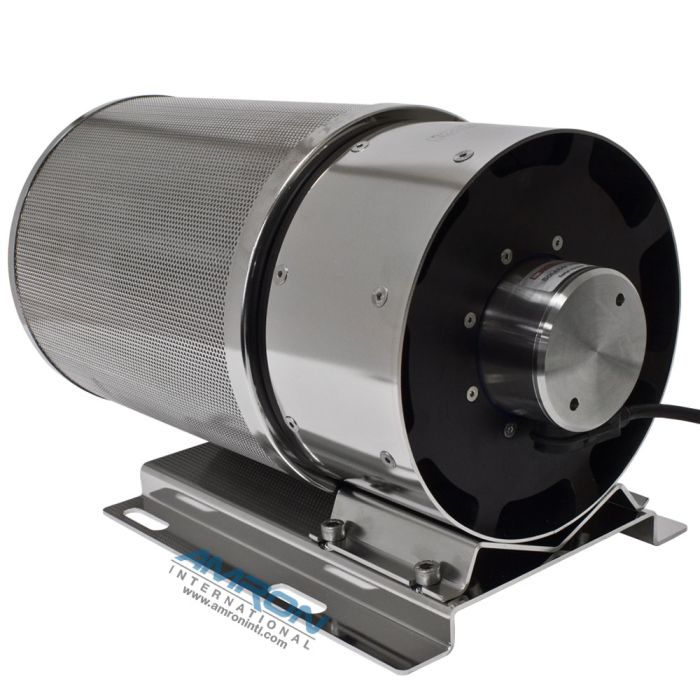

Hytech-Pommec 3.80.1018-1V Carbon Dioxide (CO2) Scrubber with Canister and Bracket - Pre-set Speed

SKU

3.80.1018-1V

The IHC Hytech Carbon Dioxide (CO2) Scrubber unit is designed to remove Carbon Dioxide (CO2) from the atmosphere in commercial diving and/or saturation (SAT) diving systems, air decompression chambers and hyperbaric chambers. This scrubber unit consists of a fan that pulls air through a canister filled with Carbon Dioxide (CO2) adsorbent, such as Divesorb or Sodalime.

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.
Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
Contact us for a quote: Call (877) 462-6700 or email sales@amronintl.com.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features: Dependable motor, completely sealed with brushless design Adjustable pre-set fan speed Canister can hold approximately 16.5 lbs (7.5 kg) of CO2 adsorbent Canister connected to motor by bayonet locking mechanism, so can be easily replaced and/or refilled Carbon Dioxide (CO2) Scrubber with Canister and Bracket - Pre-set Speed - P/N: 3.80.1018-1V Includes: User Manual Specifications: Dimensions in mm: L 422 x W 226 x H 245 Weight scrubber: 8.5 kg (empty) / 16 kg (full) Weight canister: 2.5 kg (empty) / 10 kg (full) Power supply: 24 - 28 VDC, 2 A (NOT INCLUDED) Rotating speed: 1400 - 3300 rpm (without canister) Depth: 180 mm (240 incl. connectors) Operating pressure: max 42 bar (420 msw) Note: Requires a 24 VDC, 2A power supply (pre-set fan speed) (NOT INCLUDED) Externally controlled version requires a separate fan speed control unit (NOT INCLUDED; user must secure their own power supply/fan controller)

Information

The IHC Hytech Carbon Dioxide (CO2) Scrubber motor is completely sealed. Environmental conditions such as oxygen level, humidity or pressure will not affect the scrubber motor at all; the motor is very dependable due to its brushless design. This version of the Hytech CO2 Scrubber has a pre-set fan speed.

The IHC Hytech CO2 Scrubber canister can hold approx 7.5 kg (16.5 lbs) of Carbon Dioxide CO2 adsorbent. The Hytech CO2 Scrubber canister is connected to the motor by a bayonet locking mechanism, so it can be easily replaced and/or refilled.

Resources

ATTACHMENTS

2011 Amron International Catalog - Page 45

(Size: 143.6 KB)

IHC Hytech CO2 scrubber V-B

(Size: 406.6 KB)

IHC Hytech User Manual CO2 Scrubber Version CS-09-2019

(Size: 312.1 KB)

FAQ's

What is the advantage of the pre-set speed compared with the external speed control on the CO2 scrubber?

The pre-set scrubber is set for the best possible performance for Sodasorb. Some customers may want to control the fan speed so they can decrease the flow to extend the life of the Sodasorb, in this case they would use an external speed control scrubber.

What are the dimensions of the canister for the Hytech CO2 Scrubber?

Length 32 cm X Width 22 cm

What are the measurements for the 3.80.973 CO2 Scrubber Canister?

Length: 12.04 in. Diameter: 8.66 in. Minimum Pull Out Length: 13.03 in.

How much sodasorb by weight does this scrubber canister hold?

Per the user manual, "The canister can hold approx 7.5 kg (16.5 lbs) of CO2 adsorbent."
