- HPU1416KAS-ASSY Hydraulic Power Unit

SKU

HPU1416KAS-ASSY

This Hydraulic Power Unit is driven by a Kubota D905 water cooled engine designed for providing hydraulic flow for operating a variety of commercial diving underwater hydraulic tools and equipment.

Restrictions / Notifications

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Specifications 14-16 gpm 2000 psi 40 Gallon Reservoir Oil Site/Temp Glass 50 Micro Suction Strainer Flow Control with Adjustable Relief Valve Inline Flow Meter Return Filter 0-3000 S.S. Pressure Gauge Heavy Duty Gear Pump 3/4 in. Quick Disconnects – Pressure and Return Engine Kubota D905, water cooled 21 hp @ 2800 rpm 4 Gallon Fuel Tank Air Shut Down, Manual Air Start Starter Part #: LS8RH4-1 Pow-R-Quik Pump Part #: 1303207 Gear Pump 3500 rpm @ 2500 psi In Port SAE16 Out Port SAE12 Approximate Weight: 1200 lbs. Approximate Dimensions: Height: 40 in. Length: 60 in. Width: 32 in.

Information

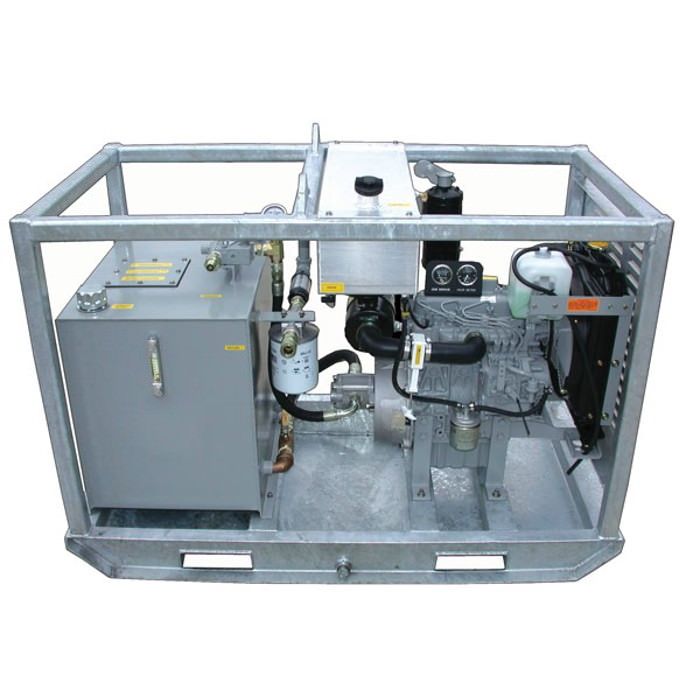

This Hydraulic Power Unit is driven by a Kubota D905 water cooled engine with air starter. The Hydraulic Power Unit is a rugged skid mounted diesel hydraulic power package designed for providing hydraulic flow for operating a variety of commercial diving hydraulic underwater tools and equipment. Models are available with single and dual circuits. The Hydraulic Power Unit comes standard with a 40 gallon reservoir, steel tubular skid with drip pan, and lifting eyes. The Hydraulic Power Unit has an adjustable flow control with built-in relief valve and flow meter.
