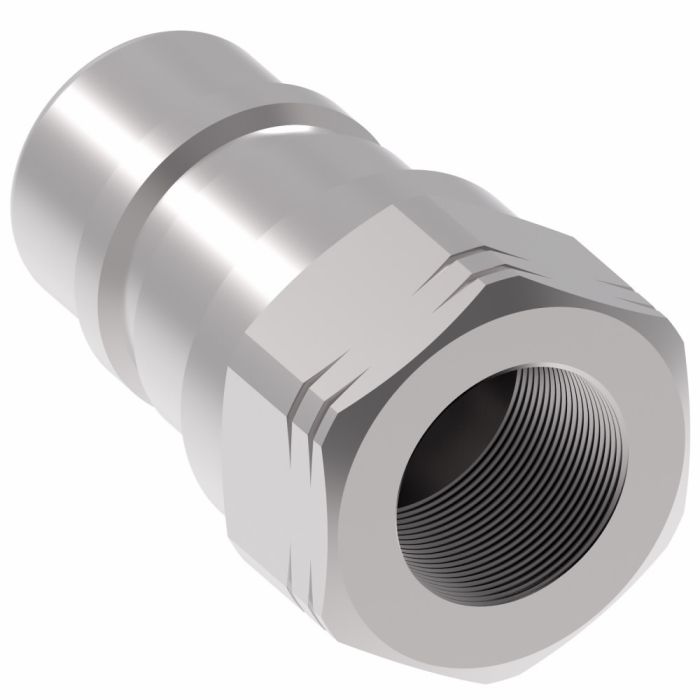

Hansen LL1K11 HK Series 1/8 Inch Plug Push to Connect - 303 Stainless Steel
Hansen HK Series 1/8 in. Plug Push to Connect - 303 Stainless Steel LL1K11
Restrictions / Notifications
- Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
- CA PROP65
Warning: Cancer and Reproductive Harm www.p65warnings.ca.gov
More Information
|
Application:
- Agriculture
- Hydraulic Tool
- General Industry
- Construction
- Fluid Transfer
- Transportation
- Military
- Law Enforcement/Rescue
- Chemical
- Oil and Gas
- Consumer Products
- HVAC
- Food and Beverage
- Trucks
- Aerospace
- Medical
Specifications:
- Length/Depth: 1.26 in.
- Height: .65 in.
- Width: .65 in.
- Weight: .041 lb.
- Material: 303 Stainless Steel
- Warranty: Hydraulics Warranty
- Certifications: ISO 7241-1 Series B
- Min Working Temperature: -40 °F
- Working Pressure: 5000 PSI
- Hex Size 1: .56 in.
- Connection Style: Manual Connect
- Operating Pressure: 5000 PSI
- Internal Connection Type: Ball Lock
- End Type 2: NPTF
- End Type 1: Push to Connect
- Max Working Temperature: 250 °F
- Item Type: Male Half
- End Size 2: 1/8 in.
- Thread Sealant: No
- Media: Hydraulic
- Flow Rate: .8 gal/min
- Body Size: 1/8 in.
- Angle (Shape): Straight
- Seal Material: Buna-N
- End Gender 2: Female
- Latch Type: Push/Pull
- Fluid Compatibility: Hydraulic Service
- Fluid Loss: .5 cm³
- Safety Locking Mechanism: None
- Thread Size 2: 1/8-27 in.
- Seal Part Number if Included: 9141
- Max Air Inclusion: .6 cm³
- End Gender 1: Male
- Valve Type: 2-Way
|
Hansen HK Series 1/8 in. Plug Push to Connect - 303 Stainless Steel LL1K11
