Hansen ST Series Brass Socket 3/8-18 NPTF Male End Connection

Name: Hansen ST Series Brass Socket 3/8-18 NPTF Male End Connection
Brand: Hansen
SKU: 3S20
Price: 14.92 USD
Availability: InStock

SKU

3S20

List Price: $30.44

$14.92

ST SERIES BRASS SOCKET 3/8-18 NPTF MALE END CONNECTION

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
CA PROP65
Warning: Cancer and Reproductive Harm www.p65warnings.ca.gov

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

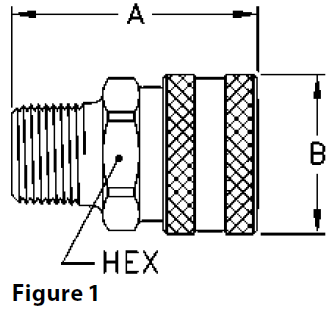

	Applications Fluid transfer Chemical Food and beverage Injection molding Marine Medical Pressure washing Steam cleaning Features ST Series is a straight-through coupling that is designed for use where minimum pressure drop is required and valving is not needed. These couplings are suited for various and versatile fluid transfer type systems and hydraulic applications. Ball-latching mechanism. Smooth bore permits free flow of liquid or gas. Available in NPTF, BSPP, and hose stem end connections. Specifications Standard Seal Material: Nitrile (NBR) Standard Body Material: Brass Coupling Type: Socket/Female Body Size: 3/8 in. Port Size: 3/8 in. Thread: 3/8 -18 Type: NPTF Dimensions A: 1.75 in. / 44.5 mm B: 1.16 in. / 29.5 mm Hex: 1.0 in. / 25.4 mm
