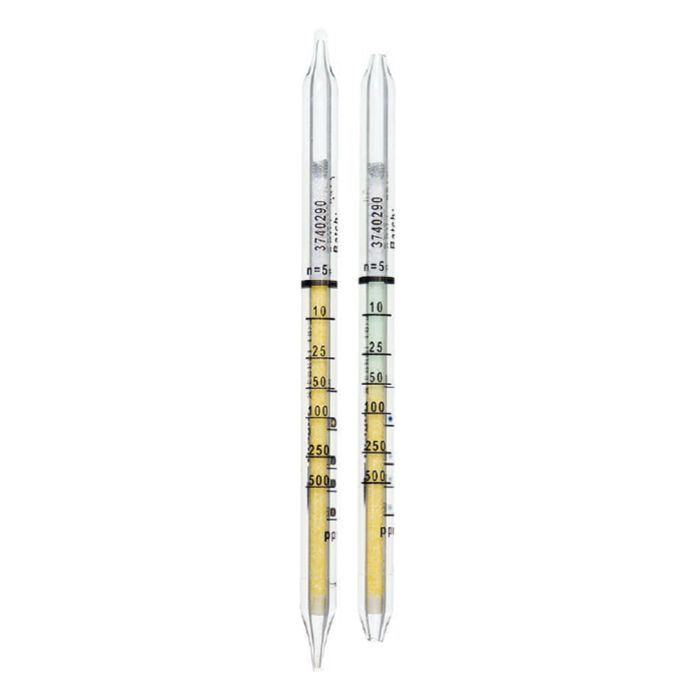

Draeger 3740290 Alcohol 10/A Detector Tube (10 Tests Per Box)

Application Range

• Standard Measuring Range: 10 - 500 ppm
• Number of Strokes n: 5
• Time for Measurement: 7.5 min.
• Standard Deviation: ± 10 - 25 %
• Color Change: Yellow → Mint Green

Ambient Operating Conditions

• Temperature: 0 to 40 °C
• Absolute Humidity: 1 – 20 mg/L

Reaction Principle

• Alcohol + organometallic compounds → green reaction product

Cross Sensitivity

• Methanol, ethanol, iso-propanol, and n-butanol are indicated with the same sensitivity.
• N-propanol, 2-butanol, i-butanol, and tert-butanol are indicated with half sensitivity (indication × 2 = measured value).

Permissible Ambient Conditions

• Temperature: 0 to 40°C / 32 to 104°F
• Temperature Correction:
  • 15 - 25°C / 59 - 77°F → none
  • <15°C / 59°F  → +10 % of the measured value per °C
  • >15°C / 59°F  → -4.5 % of the measured value per °C
• Absolute Humidity: 1 – 20 mg/L

Reaction Principle

• Alcohol + organometallic compounds → green reaction product

Cross Sensitivity

• Methanol, ethanol, iso-propanol, and n-butanol are indicated with the same sensitivity.
• N-propanol, 2-butanol, i-butanol, and tert-butanol are indicated with half sensitivity (indication × 2 = measured value).

• The following substances are not indicated in the given concentration range:

  • ≤ 2000 ppm acetone

  • ≤ 10 ppm formaldehyde

  • ≤ 50 ppm acetaldehyde

  • ≤ 1000 ppm ethyl acetate

  • ≤ 50 ppm diethyl ether

  • ≤ 100 ppm dimethyl ether

  • ≤ 1000 ppm n-hexane

  • ≤ 100 ppm benzene

  • ≤ 100 ppm toluene

  • ≤ 10 ppm xylene

  • ≤ 10 Vol% methyl bromide

  • Dichloromethane and chloromethane are not indicated.

• Note: The 3740290 Alcohol 10/a tube replaces the following four alcohol tubes with the same sensitivity, streamlining to only need the one 3740290 Alcohol 10/a tube.

  Discontinued Tubes:

  • CH29701 Alcohol 100/a

  • 8103861 N-butanol 10/a

  • 8103761 Ethanol 100/a

  • 8103801 Methanol 20/a
