Cygnus Transducer Membranes

Only %1 left

SKU

CYG-001-370X

As low as $14.92

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features A protective membrane fitted in front of the transducer face to protect it from wear or damage during use. The membrane is back-filled with a small amount of oil that also helps the transducer face “mold” to surfaces being measured. The performance of the transducer depends on the condition of the membrane and how well it has been fitted. Cygnus recommends membranes are replaced frequently as a precaution or at the first sign of any scoring, tearing or damage. Specifications Materials: Polyurethane - suitable for surface temperatures up to 167°F (75ºC). Teflon - suitable for surface temperatures up to 302°F (150ºC), with a maximum contact time of 5 seconds. A pack of standard membranes is supplied in each gauge kit. See details above to order spares and Teflon membranes.

Information

Cygnus single crystal transducers have a protective membrane fitted in front of the transducer face to protect it from wear or damage during use. The membrane is back-filled with a small amount of oil that also helps the transducer face “mold” to surfaces being measured.

The performance of the transducer depends on the condition of the membrane and how well it has been fitted. Cygnus recommends membranes are replaced frequently as a precaution or at the first sign of any scoring, tearing or damage.

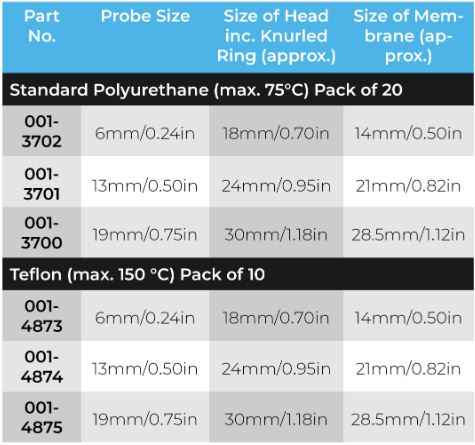

Membranes are available in two materials, the standard Polyurethane membrane is suitable for surface temperatures up to 167°F (75ºC). Also available is a Teflon membrane that is suitable for surface temperatures up to 302°F (150ºC) – with a maximum contact time of 5 seconds.
