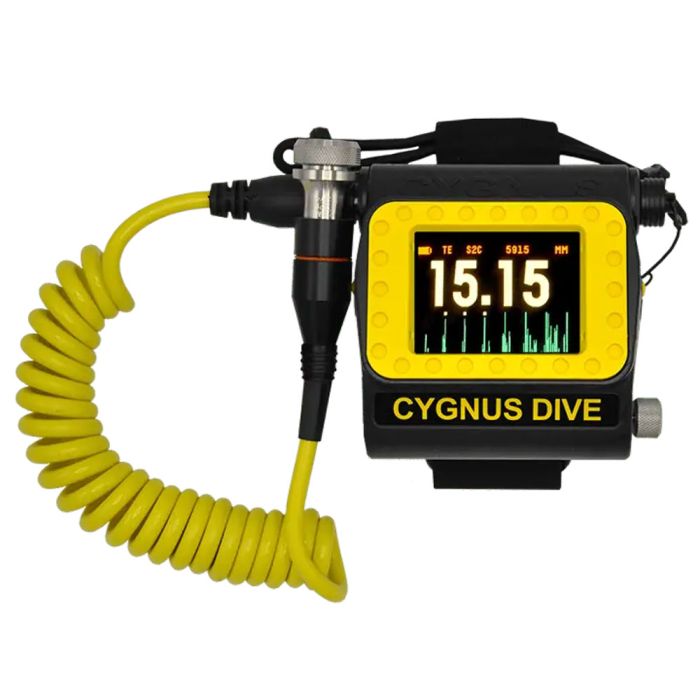

DIVE Wrist Mountable Underwater Thickness Gauge

Cygnus DIVE Mk3 UTG Kit, without Probe (SHIP NOW) + $5,049.55

SKU: CYG-001-7200/3

Quantity

Probe Selection

Cygnus CYG-001-7230 Single Crystal Probe S2C 2.25 MHz 13 mm for Underwater Thickness Gauge

SKU: CYG-001-7230

Quantity

Cygnus DIVE Mk3 UTG Kit & Probe

Eligible for Free Shipping Over $125

$5,049.55

Specs

More Information
	Features: Wrist mountable giving the diver a free hand Large, brightly colored AMOLED display, highly viewable by diver and camera in poor visibility A-Scan display to assist with measurement verification Auto-Log Data Logging - option, no log button to press - stores up to 5,000 measurements with A-scans Multiple Echo means no need to remove protective coatings up to 20 mm (0.787") thick Error-checked Multiple Echo measurements to ensure genuine, verified measurements are displayed Deep Coat mode to measure through coatings up to 20 mm (0.787") thick Single Echo mode with twin crystal probes Probes are connected to the DIVE with a coiled double jacket cable which will extend up to 1 meter (3 ft) Pressure tested to 300 meters (1,000 ft) Rechargeable Lithium-Ion battery giving up to 11 hours continuous operation. Specifications: Size: 4.1 in x 4.3 in x 1.4 in (105 mm x 110 mm x 35 mm) Battery Life: Rechargeable Lithium-Ion Battery Pack, 10 hours Weight in Air: Complete Gauge 2 lb. (905 g) Operating Temp: 14°F to 122°F (-10°C - +50°C) Measurement Range: 0.120 in.- to 9.995 in. (3 mm - 250 mm) in Steel with 2.25 MHz probe 0.065 in.- to 6.000 in. (2 mm - 150 mm) with 3.5 MHz probe 0.045 in.- to 2.000 in. (1 mm - 50 mm) with 5.0 MHz probe Accuracy - ±0.002 in. (±0.05 mm) High Resolution (<4 in) ±0.005 in. (±0.1 mm) Low Resolution Display: 2.4 in. Color TFT with LED Backlight 320 x 240 pixels Receiver: Automatic TCG, 1 to 10 MHz Bandwidth 10 Bit Digitizer 60 MSPS Data Storage: 32 Mb Flash Memory (5000 Measurement Points) Warranty: 3 years on DIVE Gauge, 6 months on Probe Data Output: RS-485 Half Duplex to DIVELink Certification: BS EN 15317:2007 Depth Rating: IP68 Rated to 984 feet (300 m) continuous immersion in sea water Cygnus DIVE Underwater Thickness Gauge Kit Includes: (1) Dive Body (1) Cygnus DIVE Underwater Thickness Gauge (2) Rechargeable Lithium Ion Batteries (1) Fast Battery Charger Spare Membranes (1) Surface and Membrane Couplant (1) Lanyard (1) Spare Screen Protector (1) Test Block (1) Carrying Case (1) User Operating Manual on USB Flash Drive Features Multiple-Echo mode for accurate, through-coat measurements as specified by Classification Societies. Single-Echo and Echo-Echo modes for heavily corroded metals with a thin or no coating. Deep-Coat function to ignore coatings up to 0.8 in. (20 mm) thick. A-scan display to assist with measurement verification. Optional Data Logging feature with Auto-Log – storing up to 5000 measurements including A-scan data without pressing any button. MSI™ (Measurement Stability Indicator) verifies stable, reliable readings. Rechargeable lithium-ion battery giving up to 10 hours continuous measurement. Optional remote display HelmetView™, Topside Repeater and CygLink surface display software. Kit Includes Instrument body with wrist strap Ultrasonic transducer with coiled cable 2 rechargeable batteries Membrane couplant Battery charger with charger base AC mains lead for battery charger Ultrasonic couplant gel Test block Spare probe membranes Membrane key Silicone grease USB flash drive with documentation Calibration certificate Operating manual Specifications Weight: 5 kg Display: 2.8 in. quarter VGA color LCD (320 x 240 pixels). Large clear thickness measurement (15 mm high numbers), viewable from all angles. A-scan display with automatic X axis. Battery level, signal strength, transducer type, velocity. Measurement mode and units indication Battery: Single 3.6V Li-ion 8.2 W battery 10 hours continuous measurement Low battery warning ‘alert’ message Measuring Modes: Multiple-Echo using 3 echoes to ignore coatings up to 0.8 in. (20 mm) thick Echo-Echo using 2 echoes to ignore coatings up 0.04 in. (1 mm) thick Single-Echo using 1 echo Deep Coat: In Multiple-Echo mode, allows measurement to be made through thicker coatings of suitable materials of up to 0.8 in. (20 mm) thick. Accuracy: ±0.1 mm or 0.1% of thickness measurement, whichever is greatest, when calibrated in accordance with Cygnus Instruments calibration procedure. Transducer Options: Single crystal transducers Twin crystal transducers Transducer Cables: Double outer jacket in tough PU Colored yellow for easy locations underwater. Coiled for ease of use. Fischer S105 series connectors Measurement Range in Steel: 0.039 – 10 in. (1 – 250 mm) depending on selected transducer and configuration, material and temperature. Measurement Resolution: Multiple-Echo with single crystal transducers – 0.1 or 0.05 mm Single-Echo and Echo-Echo with twin crystal transducers – 0.1 or 0.01 mm Measurement Units: inches or mm Transducer Zero: Fully automatic probe zeroing for all transducer types V-Path Correction: Automatic V-Path correction for all twin crystal transducers. Velocity Range: 2,000 to 9,000 m/s in 1 m/s steps Pulser: Twin channel 70 V spike pulser Receiver/Amplifier: 10 MHz bandwidth, 120 dB range, automatic TCG 60 MHz measurement time-base Data Logging (Optional): One-handed automatic logging of stable measurements. Capacity for up to 5,000 points including 640 point. A-Scan data. Data Output: RS-485 single pair, half duplex for surface connection Standards: Designed for EN 15317 Compliance: CE, UKCA, RoHS Warranty: 3 years on meter and 6 months on transducer

Information

Now with its large, brightly colored display; the Cygnus DIVE provides clear viewing from all angles for divers and their cameras, even in poor visibility. This robust, wrist-mountable, underwater, ultrasonic, metal thickness gauge has been designed for the professional diver and can be worn on the forearm, providing an invaluable free hand while performing metal thickness measurement surveys underwater. As with all Cygnus products, the DIVE Underwater Thickness Gauge has been designed for easy operation, and with only two buttons to operate, provides quick and easy menu navigation using just one hand.

Rated to a depth of 300 meters, the DIVE delivers accurate meter readings, is reliable and simple to use. Topside Repeater can also overlay the real-time thickness measurement on to a composite video signal, displaying it on the monitor screen / video recording of the survey.

The Multiple Echo technique is at the heart of the electronics and ensures coatings up to 20mm thick are ignored and that measurements are automatically verified. The DIVE can measure through corrosion and through coatings up to 20mm thick (when in ‘Deep-Coat’ mode) using the Single Crystal Probe Option. The introduction of Twin Crystal Probe Option for use with the gauge in single-echo mode offers flexibility for specific situations where there are no protective coatings. These applications include uncoated surfaces with extreme front and back wall corrosion, anchor chain links and highly attentive materials such as cast iron.

The new CygLink v4 software offers a wide range of options for recording and displaying measurements. On-Board Data Logging Capability adds data logging capability to the gauge, supplied with CygLink software for data transfer and measurements can be recorded in either a linear or grid format.

Providing an invaluable free hand while performing underwater ultrasonic thickness measurement, the Cygnus DIVE is a robust, wrist-mountable ultrasonic underwater thickness meter with a large, bright display with live A-scan making it easily viewable by both the diver and camera - even in the poorest visibility.

The Cygnus DIVE, depth rated to 300 meters, is accurate, reliable and easy to use. The Cygnus DIVE is worn on the diver's forearm, availing an invaluable free hand while performing the thickness survey. A large, very bright color AMOLED display shows the thickness measurements in big numbers along with a live A-scan for verification. Power is supplied by a replaceable, rechargeable, Lithium-Ion battery pack that gives up to 11 hours continuous measurement.

The ultrasonic probe is connected by a coiled double jacket cable and rugged locking connector. Now with the option of Single Echo and Echo-Echo Modes for use with a Twin Crystal Probe, ideal for use on extremely heavy corrosion & anchor chain. Single Echo is for use on uncoated surfaces, and Echo-Echo for use through paint up to 0.5 mm thick.

An optional data logging feature is available for storing up to 5000 measurements and A-Scans. CygLink provides surface computer-based viewing and data logging. The Topside Repeater unit with Video On-Screen Display option allows the thickness measurements to be overlaid onto the monitor screen / video recording of the survey. HelmetView™ provides a helmet-mounted remote display of thickness measurements.
