Cygnus 4 General Purpose Ultrasonic Thickness Meter & Probe

SKU

CYG-050-4000/5+PROBE

From $2,029.52

To $2,583.53

Add to Wish List

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.
Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cygnus 4 General Purpose Ultrasonic Thickness Meter

Cygnus 4 General Purpose Ultrasonic Thickness Meter (No Probe) + $2,029.52

SKU: CYG-050-4000/5

Quantity

Probe Selection

Cygnus 004-9500 | S2C Single 2.25 MHz 13 mm BNC

SKU: CYG-004-9500

Quantity

Cygnus 4 General Purpose Ultrasonic Thickness Meter & Probe

$2,029.52

Specs

More Information
	Features Multiple-Echo mode for accurate, through-coat measurements as specified by Classification Societies Deep Coat function ignores coatings up to 0.8 in. (20 mm) thick Simple, one-point calibration – no zeroing required Min/Max measurement limit functions Visual and vibrate alert Intuitive, easy to use menu Large and bright front color LCD display Extremely rugged enclosure – shock and impact proof to US MIL STD 810G Environmental sealing (water and dustproof) to IP67 – US MIL STD 810G Can be upgraded to 4+ or 6+ at an additional cost. Cygnus-Pioneered Multiple Echo Technique Uses three return echoes to give a truly accurate, error-checked metal thickness measurement – ignoring coatings up to 0.8 in. (20 mm). Accepted by all the major Classification Societies. Specifications Materials: Velocities from 0.0390 – 0.3543 in/us (1,000 – 9,000 m/s) Accuracy: ±0.002 in. (±0.05 mm) – in Multiple-Echo measurement mode, when calibrated and measuring the same material as calibrated on Resolution: 0.005 in. (0.1 mm) or 0.002 in. (0.05 mm) Transducer Options: Single crystal transducers Measurement Range in Steel: 0.040 – 10 in. (1 – 250 mm) depending on selected transducer and configuration, material and temperature Connector: 2 x Lemo 00 Power: 3 x AA / R6 batteries Battery Life: 10 hours continuous measurement Electronics: Dual channel pulser Display: 2.4 in. QVGA LCD, 47 x 37 mm Size: 3.3 x 5.1 x 1.4 in. (84 x 130 x 35 mm) Weight: 10.5 oz. (300 g) (inc. batteries) Operating Temperature: 14°F – 122°F (-10°C to 50°C) Environmental Rating: IP67 MIL STD 810G Method 501.6 (high temp 131°F (+55°C)) MIL STD 810G Method 502.6 (low temp -4°F (-20°C)) MIL STD 810G Method 507.6 (humidity 95%) MIL STD 810G Method 512.6 (immersion 1 meter for 30 mins) Shock and Impact: MIL STD 810G Method 514.7 (vibration) MIL STD 810G Method 516.7 (shock 20g) MIL STD 810G Method 516.7 (transit drop 1.22 m) Standards: Designed for EN 15317 Compliance: CE, UKCA, RoHS Warranty: 3 years on gauge and 6 months on transducer Kit Includes Cygnus 4 gauge Operating manual Neck strap Ultrasonic transducer Molded transducer cable Accessory pouch, containing: 3 x AA batteries, blue couplant gel, ½ in. (15 mm) steel test block, spare membranes, membrane key, membrane couplant Single Crystal Probes Twin Crystal Probes

Information

This robust thickness meter is truly simple to use. It has an intuitive menu and, thanks to the Multiple-Echo technique, it accurately measures metal thickness without removing protective coatings.

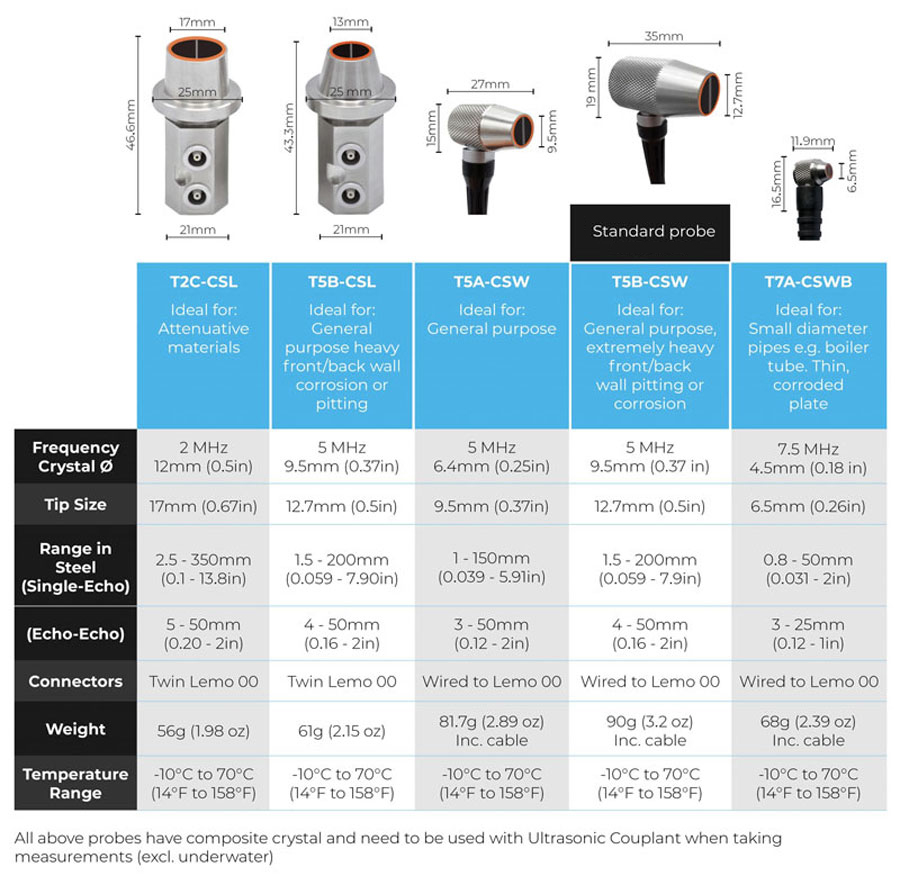

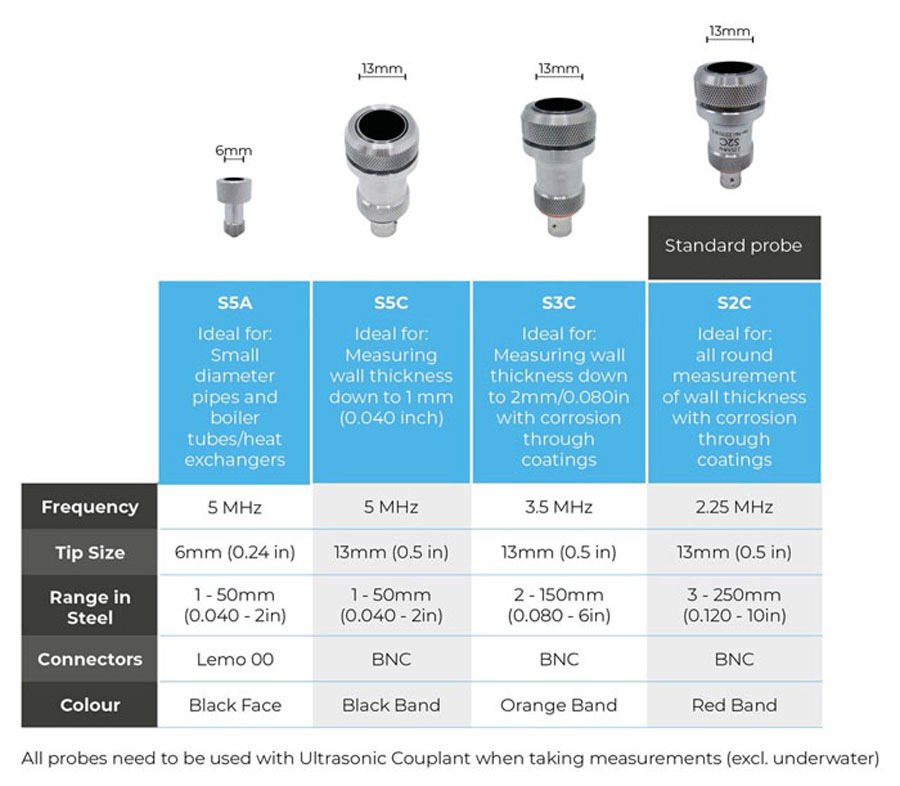

To compliment Cygnus' ultrasonic thickness gauges, Cygnus offers a range of ultrasonic transducers. The performance of any ultrasonic thickness gauge relies heavily on the transducer and its suitability to the material being measured. Therefore, selecting the right transducer is vital. All Cygnus SINGLE CRYSTAL transducers are made from stainless steel and include replaceable membranes for long life, requiring no zeroing and have a high linear accuracy.
