Crouse Hinds Right Angle Penetrator 3/4 in. NPT, SS Body, 8 Conductors, LP Side 12 in., 18 AWG Leads

Name: Crouse Hinds Right Angle Penetrator 3/4 in. NPT, SS Body, 8 Conductors, LP Side 12 in., 18 AWG Leads
Brand: Crouse Hinds
SKU: 41R08
Price: 1052.46 USD
Availability: InStock

SKU

41R08

List Price: $1,841.80

$1,052.46

Crouse Hinds Right Angle Penetrator; 3/4 in. NPT; SS Body; 8 Conductors; LP Side 12 in. 18 AWG Leads

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

Specifications

Molded cable on the high-pressure side
Leads on the low-pressure side
Penetrator Type: Right angle
Thread Size: 3/4 in. NPT
Threaded Body Material Low-Pressure Side: Stainless steel
Molded Body Material High-Pressure Side: Neoprene
Neoprene SOOW Cable Length: 22 in. (24 in. overall)
Individual Leads on Low-Pressure Side: 8 conductors, 18 AWG
Lead Lengths: 11 in. (12 in. overall)
Voltage Rating: 300V max

Important Note: High pressure must be applied to the molded body side only.

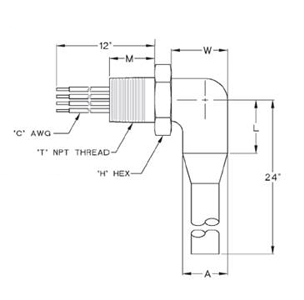

Series 41R NPT Right Angle Penetrator
Part No.	No. of Conductors	L Dim. (in.)	W Dim. (in.)	M Dim. (in.)	T Dim. (in.)	H Dim. (in.)	A Dim. (in.)	C Wire (AWG)	Max Current (amps)
41R02	2	7/8 in.	1-1/8 in.	1 in.	1/2 in.	1-1/8 in.	3/4 in.	14	18
41R03	3	7/8 in.	1-1/8 in.	1 in.	1/2 in.	1-1/8 in.	3/4 in.	14	15
41R04	4	7/8 in.	1-1/8 in.	1 in.	1/2 in.	1-1/8 in.	3/4 in.	16	8
41R06	6	1-1/4 in.	1-1/4 in.	1 in.	3/4 in.	1-7/16 in.	1 in.	16	8
41R08	8	1-1/4 in.	1-1/4 in.	1 in.	3/4 in.	1-7/16 in.	1 in.	18	8
41R10	10	1-1/2 in.	1-13/16 in.	1-5/16 in.	1 in.	1-1/2 in.	1-3/8 in.	18	3.5

Specifications

No. of Conductors: 8 (see table below for dimensions)
Molded cable on the high-pressure side
Leads on the low-pressure side
Penetrator Type: Right angle
Thread Size: 3/4 in. NPT
Threaded Body Material Low-Pressure Side: Stainless steel
Molded Body Material High-Pressure Side: Neoprene
Neoprene SOOW Cable Length: 22 in. (24 in. overall)
Individual Leads on Low-Pressure Side: 8 conductors, 18 AWG
Lead Lengths: 11 in. (12 in. overall)
Voltage Rating: 300V max

IMPORTANT NOTE: High pressure must be applied to the molded body side only.

Series 41R NPT Right Angle Penetrator
Part No.	No. of Conductors	L Dim. (in.)	W Dim. (in.)	M Dim. (in.)	T Dim. (in.)	H Dim. (in.)	A Dim. (in.)	C Wire (AWG)	Max Current (amps)
41R08	8	1-1/4 in.	1-1/4 in.	1 in.	3/4 in.	1-7/16 in.	1 in.	18	8
