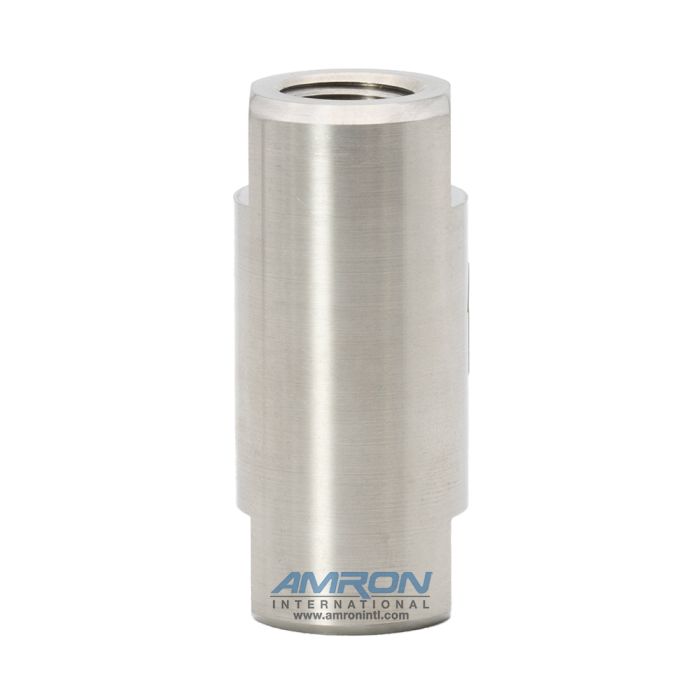

Circle Seal Check Valve Stainless Steel 1/4 FNPT, 2-5 PSIG CP

SKU

2349R-2PP

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
Contact us for a quote: Call (877) 462-6700 or email sales@amronintl.com.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

Features

Designed for high pressure service
Resilient o-ring
Single piece design
Less susceptible to contamination damage
Zero leakage at normal back pressure
Automatic compensation for wear
Cushioned, quiet closing

Specifications

Body Material: 17-4 PH stainless steel
O-Ring Material: Buna-N
Connection: Female pipe, NPT
Pipe Size: 1/4 in.
Temperature Range: −65° F to +250° F
Standard Cracking Range: 2–5 psig
Operating Pressure (17-4 PH stainless steel): 0 to 10,000 psig (690 bar)
Proof Pressure (17-4 PH stainless steel): 15,000 psig (1,034 bar)
Rated Burst Pressure (17-4 PH stainless steel): 25,000 psig (1,724 bar)

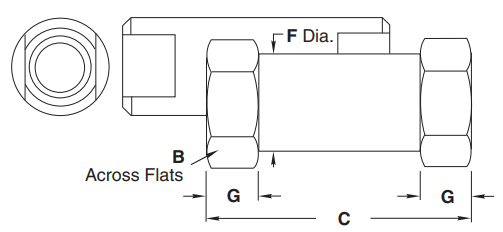

2300 Series End Connection & Dimensions (Inches) -PP: Female / Female Pipe

Dash No.	Pipe Size	B Hex	C	F	G
-2PP	1/4 in.	0.813 in.	2.00 in.	0.77 in.	0.41 in.

Dash No: -2PP
Pipe Size: 1/4 in.
B Hex: 0.813 in.
C: 2.00 in.
F: 0.77 in.
G: 0.41 in.

Information

Circle Seal Controls - Fluid Control Products offers a wide range of check valves. Operating pressure ranges include 0–25, 0–800, 0–3000, 0–5000, 0–6000, and 0–10,000 psig. Body materials typically include 303 & 316 stainless steel and brass. Operating temperatures cover −70° to +550° F (−390° to +288° C).
