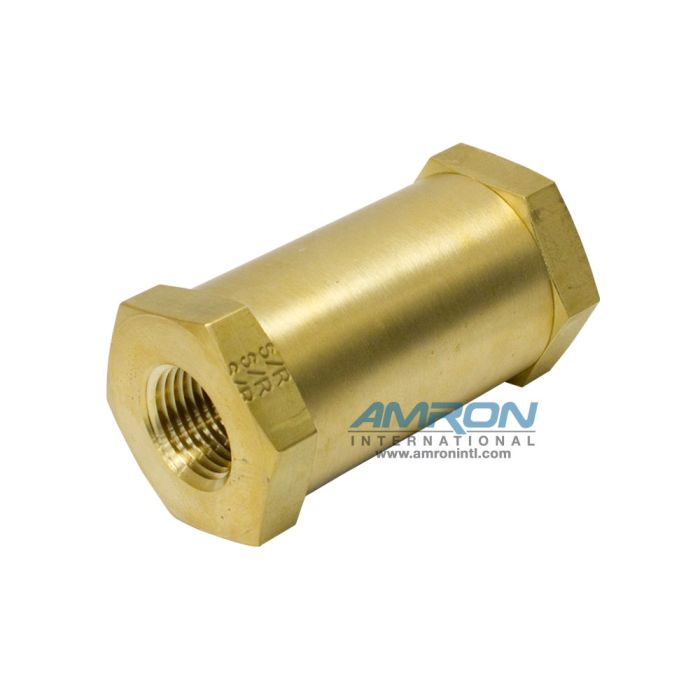

Circle Seal Check Valve 1/2 inch Female NPT - 0.5 to 1 PSIG Cracking Pressure - Brass

SKU

232B-4PP

Circle Seal 232B-4PP Female Pipe 1/2 inch Check Valves is absolutely bubble tight in leakage tests. No Leakage whatsoever at any Differential Pressure. This check valve has a Quick Opening - Positive Closing, even at extremely low pressure differential. p>

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
Contact us for a quote: Call (877) 462-6700 or email sales@amronintl.com.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features: Quick Opening/Positive Closing - Provides a wide range of adaptability Large Flow Capacity - Patented sealing principle effects complete leakproof closing under all pressure conditions Zero Leakage - Compact, easy installation. Efficient inline piston reduces size and weight Floating O-Ring - The streamlined poppet and full ports offer minimum restriction to flow Specifications: Series 200 Check Valve O-Ring Material: Viton® Operating Temperature: −20° F to +400° F Cracking Pressure: 0.5 to 1 PSIG Body Material: Brass Connection Size: 1/2 inch End Connections: Female NPT Weight: 0.92 lbs Cv (nominal): 6.6
