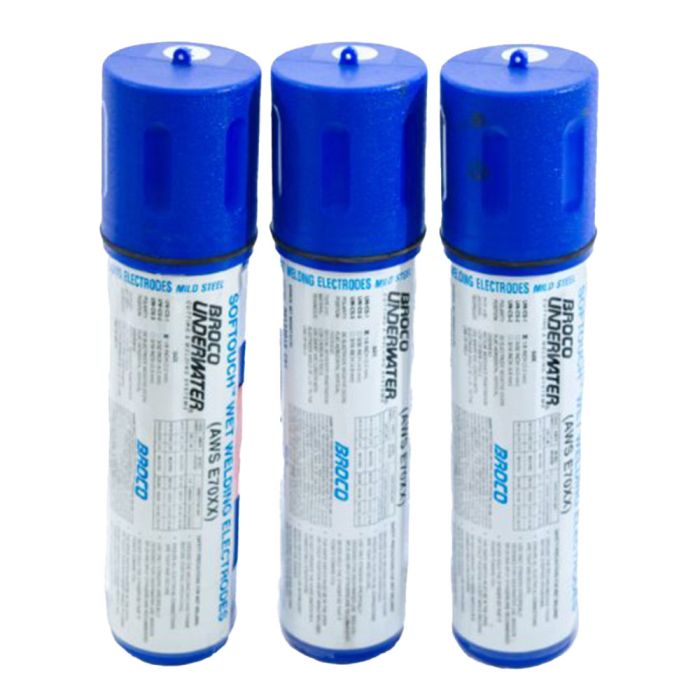

Broco UW-CS-2 SofTouch Mild Steel Underwater Welding Rods - 5/32 in. Diameter - 69 Rods

The Broco SofTouch Mild Steel Underwater Welding Rods are for wet welding mild steel and select low alloy steel. Meets or exceeds AWS E70XX specifications for underwater welding and is Approved for Navy Use (ANU).

Restrictions / Notifications

  • No Free Shipping
    This item does not qualify for free shipping.
  • CA PROP65
    Warning: Cancer and Reproductive Harm www.p65warnings.ca.gov
  • MSDS
    Safety Data Sheet available online or by request.
More Information

Features

  • Proprietary formula key to reliability, ease of use
  • Certifiable welds with less labor costs
  • Broco SofTouch Underwater mild steel rods are available in 1/8 in., 5/32 in. and 3/16 in. diameters
  • Items come in 8 lb tube

Broco SoftTouch Underwater Welding Electrodes - Recommended Current Requirements

Catalog Number

Diameter

Electrode Type

Current Settings

Flat

Horizontal

Vertical

Overhead

UW-CS-1 (96 rods)

1/8 in. (3.20 mm)

Mild Steel

160 -170

150 -170

140 -165

140 - 160

UW-CS-2 (69 rods)

5/32 in. (3.97 mm)

Mild Steel

180 - 210

170 - 210

170 - 210

170 - 190

UW-CS-3 (48 rods)

3/16 in. (4.76 mm)

Mild Steel

250 - 280

240 - 280

240 - 280

235 - 275

UW-SS-1 (96 rods)

1/8 in. (3.20 mm)

Stainless Steel

135 - 150

130 -150

125 - 145

125 - 145

UW-SS-2 (69 rods)

5/32 in. (3.97 mm)

Stainless Steel

150 - 200

140 - 200

140 - 190

140 - 180

The Broco SofTouch Mild Steel Underwater Welding Rods are for wet welding mild steel and select low alloy steel. Meets or exceeds AWS E70XX specifications for underwater welding and is Approved for Navy Use (ANU).

Broco's flux enhancing proprietary formulation, BroCote, is the secret behind the reliability and ease of operation of the Broco SofTouch® Underwater Welding Rods. BroCote makes this underwater welding rod particularly impervious to water penetration and denigration and ensures certifiable underwater weld quality with less commercial diver labor cost and time consumption.

Broco SofTouch® Underwater Welding Rods are used for on-site underwater repairs in many applications where steel must be joined underwater according to code specifications. Broco SofTouch® Underwater Welding Rod's welds consistently meet or exceed AWS D3.6-98 specifications for Type B welds, the American Welding Society's standard for certifying underwater welds. Broco SofTouch® Underwater Welding Rods are designed to pass all AWS test requirements, including radiograph, bends and hardness and is the wet welding electrode welding engineers and commercial divers prefer.

Since 1989, Broco's SofTouch® Underwater Welding Rods have been specified in the U.S. Navy's Ships Husbandry Manual Chapter 11, "Underwater Wet and Dry Chamber Welding." U.S. and Navy diving commands, shipyards, and contractors use Broco SofTouch® Underwater Welding Rods for repairs and maintenance on Naval vessels worldwide.

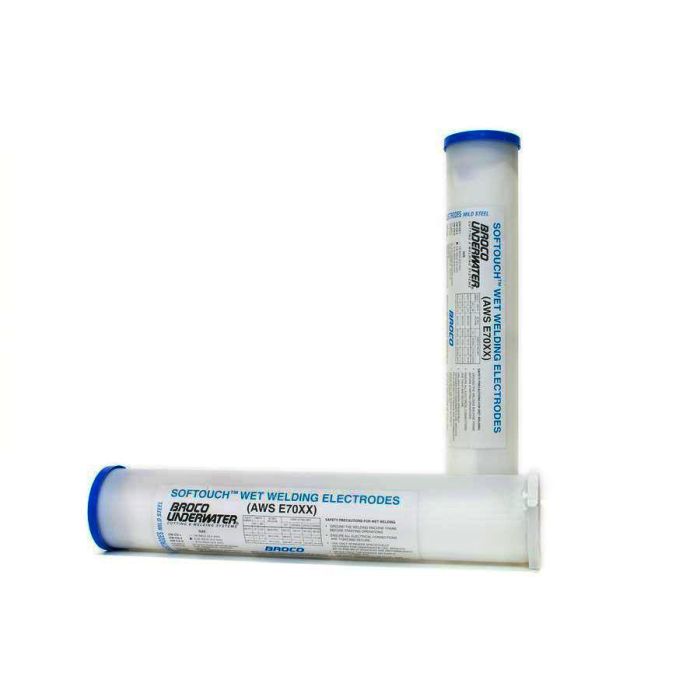

Broco SofTouch® Underwater Welding Rods wet welding electrodes are sealed in a Mil-Spec foil pouch to prevent contamination. The underwater welding electrodes are then packaged in a rigid resealable plastic tube which provides maximum protection. The color-coded end cap denotes mild or stainless steel underwater welding electrodes. Operating guidelines are printed on the label.
