Apollo Valves 15 Series ASME Air Relief Valve 1/4 MNPT, 200 PSI - Brass

SKU
15-112-B-200

List Price: $95.00

$85.11
  • Your Price for 10:

    List Price: $95.00

    $80.85
    You Save:
    5%

Restrictions / Notifications

  • No Free Shipping
    This item does not qualify for free shipping.
  • Non-Returnable/Non-Cancelable
    This item cannot be canceled or returned once an order has been placed.
  • CA PROP65
    Warning: Cancer and Reproductive Harm www.p65warnings.ca.gov
More Information
Applications
  • Ideal for a wide range of air and inert gas applications including compressors, intercoolers, dryers, receivers, control and instrument air lines, and pressurized systems and equipment.



Features
  • National board certified 15 psig through 250 psig
  • Viton® O-Ring seat
  • Registered in all Canadian provinces and territories, CRN #0G8547.5C
  • ASTM B16 brass body
  • RoHS compliant materials
  • European pressure equipment directive compliant option (CE/PED)
  • Proudly made in the USA



ASME SECTION VIII
  • Sizes 1/4 in. through 1 in.
  • Factory set pressures 15 to 250 psig
  • Maximum Temperature: 325° F



Specifications

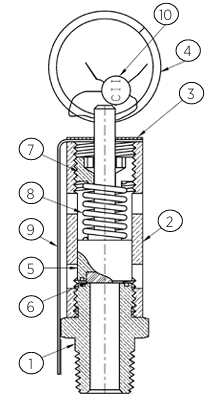

STANDARD MATERIALS LIST
1 Nozzle Brass, ASTM B-16
2 Body Brass, ASTM B-16
3 Nameplate Aluminum
4 Pull Ring Pltd. AISI 1018 CRS
5 Disc/Stem Brass, ASTM B-16
6 Seat Viton®
7 Cap Brass, ASTM B-16
8 Spring ASTM A-227 Steel
9 Inst. Tag Paper
10 Lead Seal Lead





CONFIGURATION

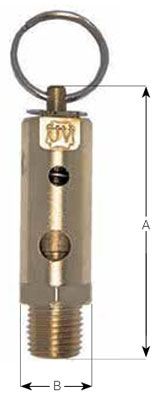

Part Number Inlet Size (in./mm) Dimensions (in./mm)

WT./100

(LB./KG)

Set Pressure

A B
15-112 1/4 NPT/8 mm 2.62 in./66 mm 0.78 in./20 mm 18.5 lb./8.4 200 PSIG

The ruggedly designed 15 Series air relief valves provide dependable overpressure protection at an economical price. The top guided design features brass construction
and resilient seating for superior performance. Widely used by OEM’s and for after market replacement.
