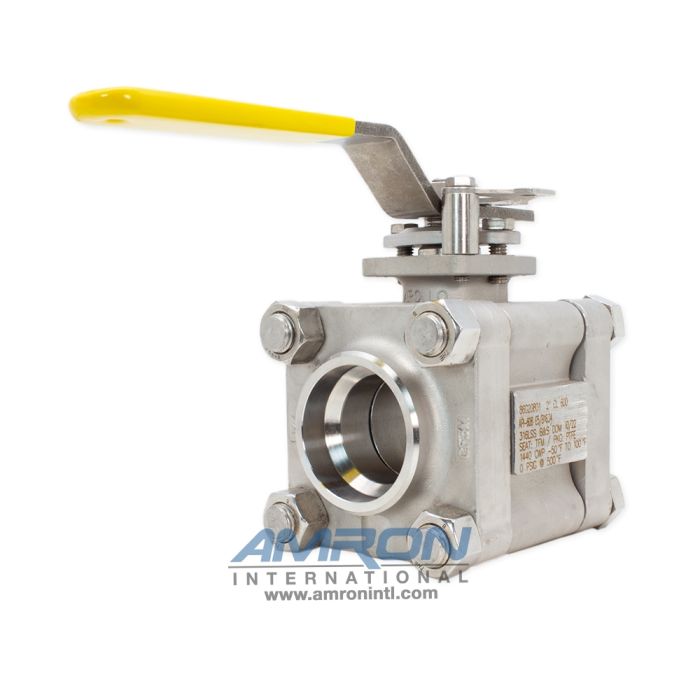

Apollo Valves 86-G Series SS 3 Piece Full Port Class 600 Ball Valve w/ 2 In. FNPT (2 x Socket Weld)

Name: Apollo Valves 86-G Series SS 3 Piece Full Port Class 600 Ball Valve w/ 2 In. FNPT (2 x Socket Weld)
Brand: Apollo Valves
SKU: 86G-208-01
Price: 3358.63 USD
Availability: InStock

SKU

86G-208-01

$3,358.63

BALL VALVE ;3 PC; STAINLESS STEEL; 2 IN FNPT S/W ASTM A351-CF3M, CLASS 600

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features A sturdy, full-port, 3-piece construction with enclosed fasteners offers a versatile solution engineered for efficient fluid control Swing-out center section and pressure balanced solid ball design ensures optimal performance Stainless steel trim & hardware Pressure balanced solid ball Compression controlled RPTFE gaskets Anti-blowout one piece bottom entry stem Two-position locking Adjustable multi-piece PTFE “V” style packing Cast bosses on the center-section and end caps for bleed & drain ports Specifications Fully machined ISO5211 mounting Vacuum Service: 29 in. of Hg 150 psi saturated steam Materials: Stainless steel Connection Type: Weld Product Group: Ball valves ETIM Class: EC011343 ball valve Series: 86G series ball valves Size: 2 in. Weight: 27.6 lbs.

Information

The 86G-200 Stainless Steel 3 Piece Full Port Class 600 Ball Valve is a sturdy, versatile solution engineered for efficient fluid control. With its swing-out center section and pressure balanced solid ball design, this valve ensures optimal performance. Further fortified by features such as compression controlled RPTFE gaskets and an anti-blowout one piece bottom entry stem, it ensures both high performance and safety.
