Analox SDA Carbon Monoxide (CO) in Nitrogen w/Panel Mount

Name: Analox SDA Carbon Monoxide (CO) in Nitrogen w/Panel Mount
Brand: Analox
SKU: SDAPCFNXA
Price: 3223.35 USD
Availability: InStock

SKU

SDAPCFNXA

$3,223.35

SDA MONITOR AND MEC CO SENSOR MODULE 0-20PPM CO IN N2; PANEL

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

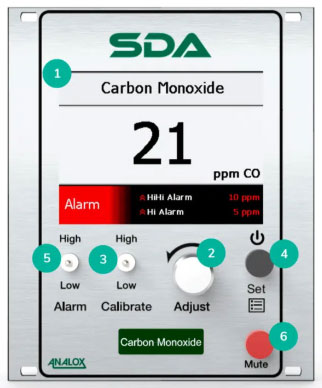

	Features Intelligent sensors flag when calibration and sensor change are due. Designed with the latest digital technology. Easily configurable with interchangeable sensors and software. Large, bright, full color display. Ethernet data output option. Available in both air and saturation diving versions to account for the helium effect on the sensor to provide a more reliable reading. Fast response, long life electrochemical sensor. Provides calibration and sensor replacement flags. Smaller depth footprint behind the panel. SDA CO Unit Color TFT LCD display Adjustable knob Calibration adjustment toggle switch Set button Alarm adjustment toggle switch Mute button Specifications Panel mount without datalogging Applications: Commercial diving Gas Detected: Carbon monoxide (CO) Sensor Range: 0 to 20 ppm CO in Nitrogen Sensor Accuracy: ±1 ppm CO ±5.0% of reading Note: Fits in the same panel cutout as the Analox 3000 series CO Monitor.

Information

The SDA is a range of panel/rack mountable atmosphere monitors originally designed with the commercial diving in mind.

The SDA CO monitor provides a full color display of the carbon monoxide reading taken from a fast response, accurate, long life digital electrochemical sensor.

The alarm set points and calibration can be achieved using the front panel user interface and the SDA CO provides audio/visual alarms, optional data-logging and 4-20mA/relay outputs. The monitor interfaces with a state-of-the-art digital electrochemical CO sensor.

Diving system classification societies and industry bodies such as IMCA require/suggest that carbon monoxide levels are maintained at very low levels in a dive system, as carbon monoxide is highly toxic.

Carbon monoxide can enter the diving system through an air compressor or a gas transfer compressor. It could also be present in the delivered gas and is metabolized by the divers, so is produced in the chamber during operations.

The SDA CO can be located in sat/dive control or at the compressor. Both the SDA CO and the option flow panel can be provided as either rack or panel mount.
