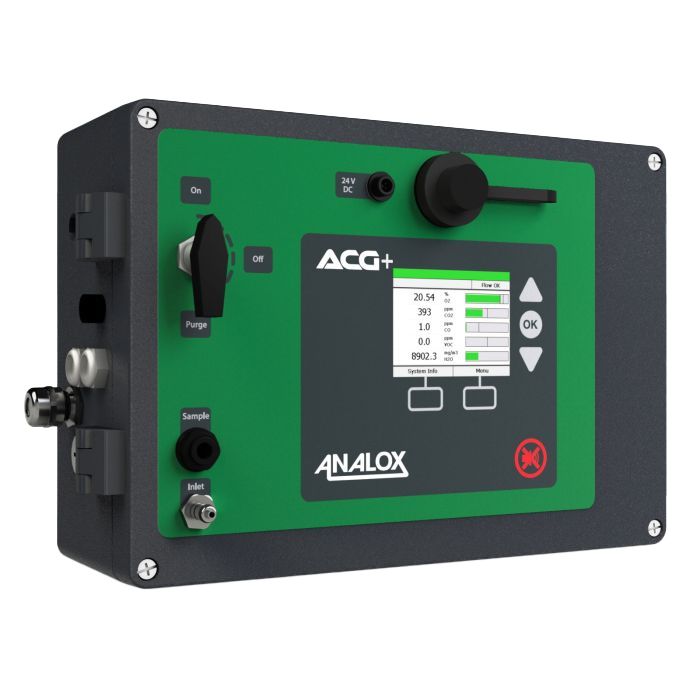

Analox ACG+ Analyzer O2, CO2, CO, VOC & Water Vapor

Name: Analox ACG+ Analyzer O2, CO2, CO, VOC & Water Vapor
Brand: Analox
SKU: ACGPAAAAAXX
Price: 15433.00 USD
Availability: InStock

SKU

ACGPAAAAAXX

$15,433.00

ACG+ Analyzer O2, CO2, CO, VOC & Water Vapor

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

Features

Provides continuous monitoring 24/7.
Low maintenance and is easy to install and maintain.
Provides 90 days of data logging, which you can easily retrieve via a USB connection.
Cost-effective alternative to colorimetric tube testing.
Supplied as either a fixed or portable version, depending upon your needs.
Can be used on any breathing air compressor.
Digital display.

Specifications

Power: 24V DC
Optional Battery Power: NiMH or Li-ION
Optional Mains Adapter: Universal input 95 to 250 V AC, 50/60 Hz
IP Rating: IP45
Response Time: T90 < 120 seconds T90 < 15 minutes H₂O sensor
Temperature Operating: 23°F to 122°F (−5 °C to 50 °C ) / Storage: 14°F to 140°F (−10 °C to 60°C)
Flow Rate: 0.5L per minute (max)
Inlet Pressure: 5-10 bar gauge (optional regulator can be purchased)
Humidity: 0-99% RH (non-condensing)
Outputs: 1 x normally open relay contacts 1 x normally closed relay contacts 3 x 24 V DC switched output

Feature	O2 Sensor	CO2 Sensor	CO Sensor	VOC Sensor	Water Vapor Sensor
Range	0 to 50%	0 to 1000 ppm	0 to 20 ppm	0 to 100 ppm	0 to 100 mg/m3
Accuracy	±(0.035% O2 + 1% of reading + ±(0.035% O2 + 1% of reading + 0.15% of reading/°C)	±(25 ppm CO2 + 1% of reading + 1 ppm CO2/°C)	±(1 ppm CO + 5% of reading + 0.1 ppm CO/°C)	±(1 ppm VOC + 5% of reading + 0.25% of reading/°C)	±(0.15 mg/m3 H2O + 20% of reading)
Technology	Analox MEC intelligent electrochemical oxygen sensor	Analox 5S3 intelligent NDIR sensor	Analox MEC intelligent electrochemical sensor	Analox MEC intelligent PID sensor	Water vapor sensor using capacitive technology

Information

A Proven Solution

Analox understands the unique demands of military vessels operating in diverse locations and situations. For more than 30 years, Analox has been working with military decision-makers representing more than two dozen nations. Analox products are currently protecting sailors aboard vessels representing the Royal Navy, Royal Norwegian Navy, Royal Netherlands Navy, and United States Navy.

The Analox team of engineers and product development specialists created the ACG+ for work in multiple environments, addressing a variety of situations and applications. In early 2021, the International Association of Oil and Gas Producers (IAGP) released updated standards for diving operations. The Analox ACG+ is a proven tool for commercial diving professionals maintaining these standards on a daily basis.

A Reliable Tool

The ACG+ offers continuous monitoring of up to five different gas variables (oxygen, carbon monoxide, carbon dioxide, volatile organic compounds, and water vapor) and simultaneously displays results for testing and calibration purposes. This eliminates potential delays and downtimes while test results are sent out for analysis.

The ACG+ has also made cumbersome colorimetric tubes obsolete by drastically reducing the potential for human error in gas analysis. The continuous monitoring also has virtually eliminated the need for time-consuming spot checks.

The ACG+ simultaneously scans for O₂, CO₂, CO, VOCs, and water vapor, making it one of the most versatile tools any vessel can utilize. The automatic data log provides additional peace of mind for decision-makers.

A Cost-Effective Solution

You can’t put a price on safety, reliability, and peace of mind. The Analox development team created the ACG+ to combine multiple tasks simultaneously, reducing the need for multiple analyzer units, costly test tubes, and often, extended times in port for repairs.

The ACG+ is available in either a fixed location model or convenient portable units. This adaptability provides designers, procurement officers, and equipment specialists some options in close-quarters situations.

Easy to Install and Maintain

The Analox team understands the complexities and challenges that accompany equipment installation. That is why our 24/7 technical support department was created. Instant solutions and technical support are always just a call or email away.

While each ACG+ unit can monitor up to five gasses simultaneously, each analytical system operating in the ACG+ is independent of the others. This means sensors can be replaced individually without needlessly causing downtime.

An Easy Choice

The Analox ACG+ has been proven effective in military situations around the world. The unit’s continuous and specific monitoring capabilities make it an easy choice for key decision-makers.
