Analox 5S MkIII CO2 Infrared Transducer Full Sensor Module

Only %1 left

SKU

A5S3ASNXA

As low as $1,368.80

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

Features

The 5S MkIII carbon dioxide (CO2) sensor is used within other Analox products, including our SDA carbon dioxide (CO2) monitor as an OEM solution, utilized by other analyzer manufacturers and as an ambient CO2 sensor connecting to a control panel.
It is available in a variety of ranges from 0-5000 ppm to 0-100% and can provide either a 0 to 2v or 4-20mA output.
This highly precise, stable and accurate dual-beam infrared carbon dioxide (CO2) sensor is ideal for integration into a carbon dioxide (CO2) incubator or other gas cabinets.
Supplied in an aluminum housing, this carbon dioxide (CO2) sensor includes an onboard, barometric pressure sensor compensating for the effect of atmospheric pressure.
Low power consumption.
Variety of ranges.
Analog output.
Long life expectancy.
Digital outputs.
Temperature-compensated.

Specifications

Warm Up Time: 30 seconds
Response Time: T90 in <30 seconds
Detection Technique: Infrared absorption
Storage Temperature: −20 to +70°C
Humidity: 0 to 99% non-condensing
Flow Range: 0.1 to 2 liters/minute
Operating Temperature: −5 to +55°C
Pressure Range: 800 to 1500 mbarA
Power Supply: 9 to 36 V DC (regulated 5V option also available)

EMC Emissions: To EN50270 2006, Type 1
EMC Susceptibility: To EN50270 2006, Type 2. Max deviation under 10V/m testing is 150 ppm.
Output: Either 0-2V DC into load of >1000 Ohms or 4-20mA into load of <=400 Ohms (specify at time of order)
Warm Up Fault Conditions: Either >2V DC (0-2V DC option) or >20mA (4-20mA option)
Enclosure: Die cast aluminum
Dimensions: 115 x 70 x 40 (WxHxD), including flow adaptor

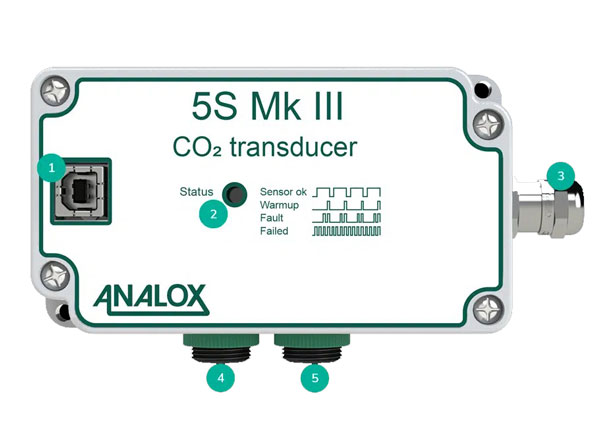

USB Type B Port
Status Indicator
Power Cable
CO2 Sensor (Dual Port Sensor Only)
CO2 Sensor (Single and Dual)

The sensor may either monitor gas in the surrounding atmosphere, or a flow adapter can be inserted into the gas port inlet to allow monitoring of pumped sample gas from a remote location.

PLEASE NOTE: Sensors are provided optimized for either helium or nitrogen balance gases and must be used as such to achieve specified performance.

Part Number	Ranges	Resolution
A5S3ASH6G	0-5000 ppm in Helium (He)	2 ppm
A5S3ASN6G	0-5000 ppm, 0.2 - 2V output	2 ppm
A5S3ASN4S	0-5000 ppm, 4-20mA output, OEM	2 ppm
A5S3ALN6G	0-10000 ppm, 0.2 - 2V output	5 ppm
A5S3BBN9S	0-2%, 0.1 - 1V output	0.001%
A5S3BBN4S	0-2%, 4-20mA output, OEM	0.001%
A5S3BCN7S	0-5%, 0 - 2V output, OEM	0.002%
A5S3BDN7S	0-10%, 0 - 2V output	0.005%
A5S3BNN7S	0-20%, 0 - 2V output, OEM	0.01%
A5S3BNN4S	0-20%, 4-20mA output, OEM	0.01%

Sensors are provided optimized for either helium or nitrogen balance gases and must be used as such to achieve specified performance.

Accuracy - Diving Grade Sensors

The 5000 ppm diving-grade units meet the requirements of DNV for use in commercial diving to a depth of 350m and across the following variations in environmental conditions:
- Temperature Range: 23°F – 131°F / -5°C to +55°C
- Ambient Pressure: 950 mbar – 1050 mbar (712.5 mm Hg – 787.5 mm Hg)
- Humidity: 0 – 99% non-condensing
- Vibration: Compliant to DNV OS-D201 Oct 2008, Section 3 B201

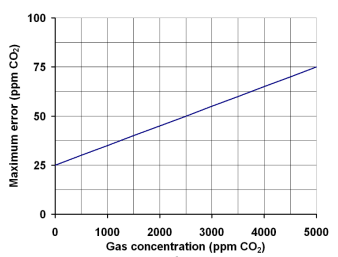

- Sensor Error: Less than 25 ppm plus 1% of the sensor reading at Standard Temperature and Pressure, see graph:

- Temperature Error: Less than 2.5 ppm/°C of temperature shift
- Long Term Sensor Drift: Less than 5 ppm per week

Information

Supplied in an aluminum housing, this carbon dioxide (CO2) sensor includes an onboard, barometric pressure sensor compensating for the effect of atmospheric pressure. It is available in a variety of ranges from 0-5000 ppm to 0-100% and can provide either a 0 to 2v or 4-20mA output.

This highly precise, stable and accurate dual-beam infrared carbon dioxide (CO2) sensor is ideal for integration into a carbon dioxide (CO2) incubator or other gas cabinets.

The 5S MkIII carbon dioxide (CO2) sensor is used within other Analox products including our SDA carbon dioxide (CO2) monitor as an OEM solution, it is utilized by other analyzer manufacturers and as an ambient carbon dioxide (CO2) sensor connecting to a control panel.

The 5S MkIII (or 5S3) carbon dioxide (CO2) sensor can be used in laboratory incubators to ensure process gasses are maintained and monitored at all times. As an example, the 5S MkIII’s are used in cell culture incubators to help aid the cell cultivation process and tissue culture storage.

The 5S MkIII is also utilized as a robust and accurate industrial process gas sensor or as a part of a safety system in applications including commercial diving and agriculture.
