Amron Easy Temperature Monitor

Name: Amron Easy Temperature Monitor
Brand: Amron
SKU: 3129-01
Price: 828.00 USD
Availability: InStock

SHIP NOW

SKU

3129-01

$828.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Amron 3129-01 Easy Temperature Monitor can be connected to and used with the Amron 3125 Inner-Lock Combo Box with Sound Powered Phone. Note: 3129-RTD not included. Features: LED Display Temperature Range of 32°F to 140°F (0°C to 60°C) Centigrade Display can be converted at time of order upon request AC Powered, 100 – 240 Vac, 50 – 60 Hz Dimensions: Cutout Size: 1/32nd DIN panel Width: 45.0mm +0.6mm -0.0mm (1.77in. +0.02in. -0.0in.) Height: 22.2mm +0.3mm -0.0mm (0.87in. +0.01in. -0.0in.) Maximum Panel Thickness: 9.5mm (0.374in) Depth from front panel to back of monitor required: 116.2mm (4.57in.) Amron 3129-01 Easy Temperature Monitor can be connected to and used with the Amron 3125 Inner-Lock Combo Box with Sound Powered Phone. Features LED display Centigrade display can be converted at time of order upon request Specifications Temperature Range: 32 °F to 140 °F (0 °C to 60 °C) AC Powered: 100 – 240 VAC, 50 – 60 Hz Cutout Size: 1/32 DIN panel Width: 1.77 in. +0.02 in. -0.0 in. (45.0 mm +0.6 mm -0.0 mm) Height: 0.87 in. +0.01 in. -0.0 in. (22.2 mm +0.3 mm -0.0 mm) Maximum Panel Thickness: 0.374 in. (9.5 mm) Depth from Front Panel to Back of Monitor Required: 4.57 in. (116.2 mm) NOTE: 3129-RTD is not included.

Information

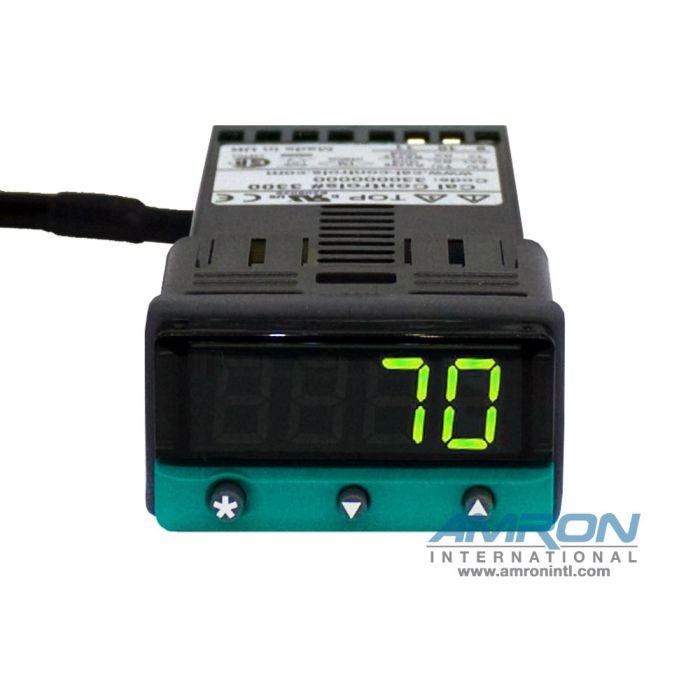

The Amron International Model 3129-01 Easy Temperature Monitor is a panel mounted 48x24mm (1/32nd DIN) digital temperature meter displaying temperature in Fahrenheit or Centigrade. The Model 3129-01 is used with a RTD Temperature Probe Model 3129-RTD (not included). The Amron Temperature Monitor can be connected to and used with the Amron 3125 Inner-Lock Combo Box with Sound Powered Phone. Unit is supplied ready for panel mounting and has a bezel and mounting bracket.

Note: 3129-RTD not included.

The Amron International Model 3129-01 Easy Temperature Monitor is a panel mounted 48 × 24 mm (1/32 DIN) digital temperature meter displaying temperature in Fahrenheit or Centigrade. The Model 3129-01 is used with the RTD Temperature Probe Model 3129-RTD (not included). The Amron Temperature Monitor can be connected to and used with the Amron 3125 Inner-Lock Combo Box with Sound Powered Phone. The unit is supplied ready for panel mounting and has a bezel and mounting bracket.

NOTE: 3129-RTD is not included.

Resources

ATTACHMENTS

Amron 3129-01 Easy Temperature Monitor Data Sheet

(Size: 349.4 KB)

FAQ's

Can I order the Easy Temperature Monitor to read in centigrade?

Yes, just let your sales rep know that you want the display to read in centigrade.

How do I convert my Easy Temperature Monitor from Fahrenheit to Centigrade?

Please refer to the Attachments Tab and download the file named Amron Model 3129 Temperature Monitor Guide. Read page 2 under section Range Selection, you'll find a diagram showing how to configure the jumpers in sections S4 and S5.

Is the remote probe included with the Easy Temperature Monitor?

No.

Does the 3129 Easy Temperature Monitor come with a calibration certificate?

No. If you require a calibration certificate, you will need to have a 3rd party come and calibrate your unit.
