Amron Actuator Valve Assembly

SHIP NOW
SKU
540-0012-01
$43.30
Eligible for Free Shipping Over $125
More Information
Actuator Valve Assembly 540-0012-010 supports the following



Specifications
  • Materials:
    • Ultem
    • Viton®



450M/350M Actuator Valve Assembly, Item 24 in schematic



Demand Regulator Assembly Parts Breakout - P/N: 540-0001-01 (450M) / P/N: 540-0002-01 (350M)



REF Part Number Description Material
20 340-0009-01  Captivation Nut, Demand  316 Stainless Steel
21 540-0014-01 Main Adjustment Assembly  316 Stainless Steel, Viton®
22 270-0007-01  Balance Chamber  PC/ABS Blend
23 320-0023-01 Spring, Demand Actuator for 450M 316 Stainless Steel
320-0001-01   Spring, Demand Actuator for 350M 316 Stainless Steel
24 540-0012-01  Actuator Valve Assembly Ultem, Viton®
25 340-0008-01  Retaining Clip  316 Stainless Steel
26 540-0015-01 Demand Tube w/ Seals  316 Stainless Steel, Viton®
27 345-0001-01 Demand Lever 316 Stainless Steel
28 540-0008-01  Orifice w/ Seal for 450M 316 Stainless Steel, Viton®
540-0009-01 Orifice w/ Seal for 350M 316 Stainless Steel, Viton®

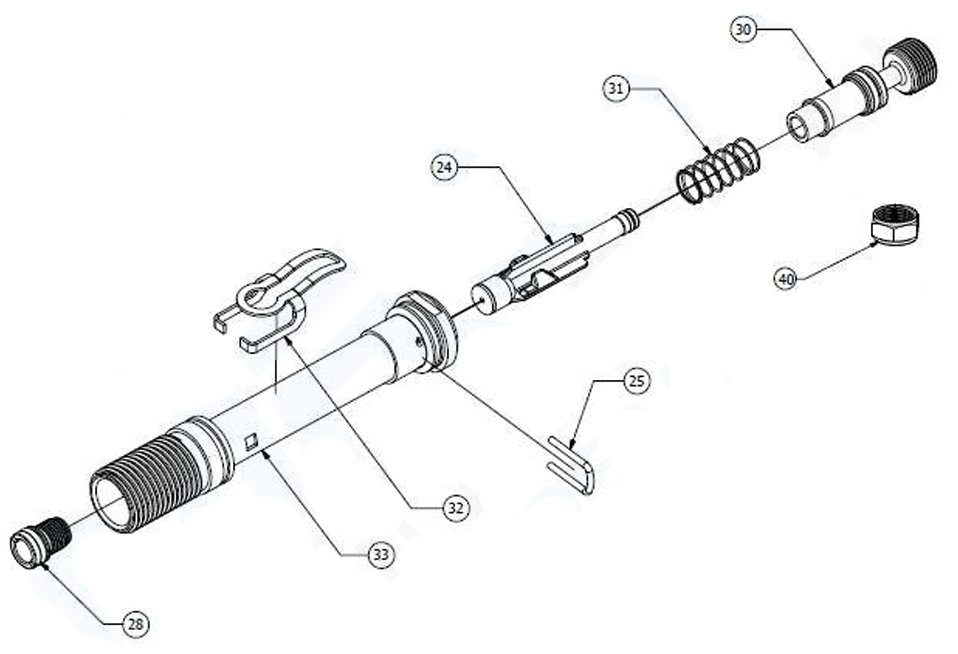

Amron 450M/350M Exhaust Regulator Assembly Parts Breakout - P/N: 540-0025-01



REF Part Number Description Material
24 540-0012-01 Actuator Valve Assembly Ultem, Viton®
25 340-0008-01 Retaining Clip 316 Stainless Steel
28 540-0022-01  Orifice w/ Seal 316 Stainless Steel, Viton®
30 540-0010-01  Exhaust Balance Chamber Assembly PC/ABS Blend
31 320-0011-01  Spring, Exhaust Actuator 316 Stainless Steel
32 345-0002-01  Exhaust Lever 316 Stainless Steel
33 540-0023-01  Exhaust Tube w/ Seal 316 Stainless Steel, Viton®
40 340-0010-01  Captivation Nut, Exhaust 316 Stainless Steel
