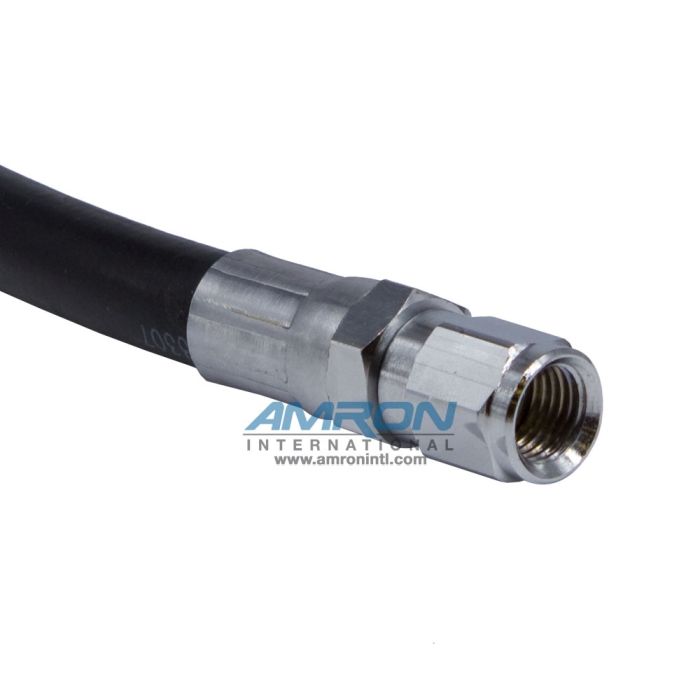

Amron 3/16in. High Pressure Air Hose 72in. w/ #4 JIC x #4 JIC Diver & Supply Fittings

Applications

• Scuba diving

Specifications

• Hose Type: High pressure hose, 3/16 in. ID
• Length: 72 in.
• Max Working Pressure: 5000 PSI / 344.7 bar
• Minimum Burst Pressure: 20000 PSI / 1379 bar
• Nominal Bore: 0.180 in. to 0.196 in. / 4.6 mm to 5 mm
• Outside Diameter: 0.480 in. to 0.515 in. / 12.2 mm to 13.1 mm
• Temperature Range: -40°F to +190°F / -40°C to +88°C
• Weight: 8.9 lbs. per 100 ft. of hose
• Standard Color: Black

Hose Construction

• Tube: Black odorless nitrile rubber
• Reinforcement: Single braid synthetic yarn
• Cover: Black neoprene rubber

Fittings

• Fitting Type: #4 JIC female swivel x 3/16 in. barb
• Made from brass
• Plated with hi-phosphorus electroless nickel OR copper, nickel, chrome

TESTING

• Tested to EN250:2014 standards.
• Optional High Pressure Test Certificate (QA-FRM-043) available upon request for additional fee.

This item is available in other lengths and configurations, see HP3-4FJIC-4FJIC-BUNDLE.
