Designed for use in manned pressure vessels/hyperbaric chambers.
Suitable for use in chambers simulating 225 ft. (depth)
Features
Water based
Maximum visibility during discharge
Easy to recharge and maintain
Leaves no powder residue
Stored pressure design
Polished stainless steel cylinders
All metal valve construction
Large loop stainless steel pull pin
Exclusive crevice free, butt welded cylinders

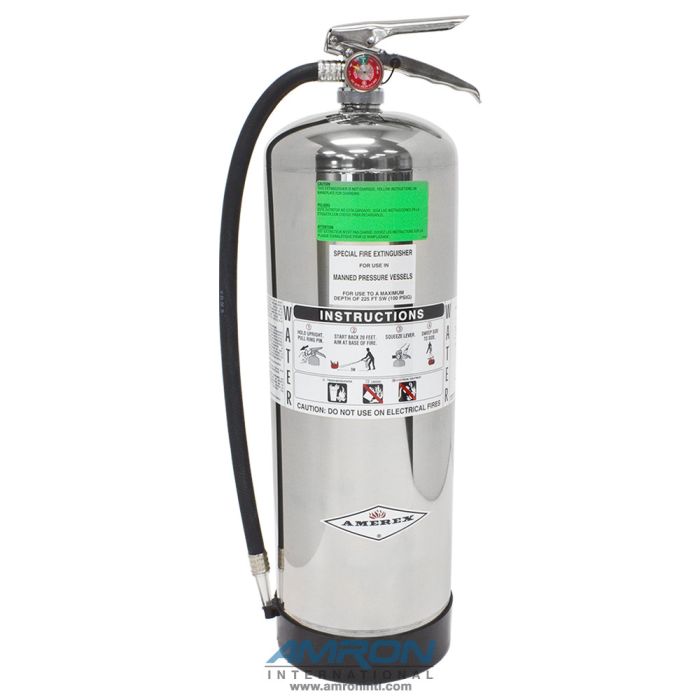

Model 240H Special fire Extinguisher for use in Manned Pressure Vessels: Part Number Model-240H Includes
02141 Amerex fill adapter
Wall hanger
Owner's Manual
Specifications
Design: Hose and nozzle
Model Number: 240H
Water Capacity: 2.5 gal. (9.5 L)
Shipping Weight: 7.5 lbs. (empty)
Height: 24.5 in.
Width: 9 in.
Depth: 7in.
Range: 45 – 55 ft.
Discharge Time: 55 seconds
Included Bracket: Wall
Maximum Pressure: 200 psi (13.8 bar)
Maximum Depth: 225 FSW
Empty Weight: 7.5 lbs. (3.40 kg)
Temperature Range: 40°F to 120°F (4°C to 49°C)
Relief Valve
Outlet Relief Pressure: 425 PSI
Inlet Relief Pressure: 3 PSI (If the fire extinguisher is empty and placed in a chamber, this valve will let pressure in from the environment into the fire extinguisher)
SO-9001 / ISO-14001 Certified
Listed on the SEA 00C3 Authorization for Navy Use (ANU) Program list, Category 7.1.7 Fire Extinguisher, Commercial
Notes
Model 240H utilizes the cooling, soaking and penetrating effect of a 45-55 ft. stream of water. The 55-second discharge time makes it very effective for inexperienced operators for use on Class A fires.
Protected by two safety relief valves for high and low pressure variations.
Amerex Model-240H Special Fire Extinguisher for use in Manned Pressure Vessels is designed for the pressures and confines of a hyperbaric chamber. The Model-240 comes with a fill adaptor and has been fully tested and approved for use in all U.S. Navy standard double lock chambers.
In actual operation, the Amerex Model-240H Hyperbaric Water Based Fire Extinguisher is filled with potable water and then pressurized to 200 psig. The unit comes complete with a fill valve, pressure gauge and two safety valves to prevent over and under pressurization. The Model-240H can be used in a chamber pressurized to a maximum depth of 225 FSW. If the unit is activated at the maximum depth, and held until the water is exhausted, the pressure inside the extinguisher will equal the chamber pressure. With the chamber and extinguisher at equilibrium, the fire extinguisher cannot implode or crush.
Does the MODEL-240 Fire Extinguisher require any maintenance?
Yes, inspect monthly or at more frequent intervals when circumstances require. Make sure the hose and nozzle are unobstructed. Gauge pressure must be in operable range 0-200 PSIG. Lockpin must be in place. A visual inspection should be preformed annually and a hydrostatic test preformed every 5 years. Fire extinguisher laws vary in different regions of the world please check the laws that govern your area.
Has the Model-240 Fire Extinguisher been classified by ABS, Lloyds, DNV, Germanischer Lloyd, or any other classifying agency?
No. However, it was tested and approved for use by the U.S. Navy.
Where on the cylinder can I find the date the tank was originally hydrostatically tested?
Per the manufacturer, the manufacture date (year only) is located on the lower right side of the large instructions label on the center of the tank. Your fire extinguisher should be hydrostatically tested every 5 years. Fire extinguisher laws vary in different regions of the world so please check the laws that govern your area.
Shouldn’t there be a month and year of manufacture on my fire extinguisher’s name plate?
No. The rules and regulations that govern this product only state there has to be a year of manufacture. When hydrostatically testing your tank you have until December 31 of the year the hydrostatic test is due to hydro your tank.
The pressure gauge says "use with halon 1211 only". Don't you use pressurized air to expel the water?
Per the manufacturer, the gauge is used on two different products. They confirm it should be recharged using shop air as stated on the name plate on the side of the extinguisher.
