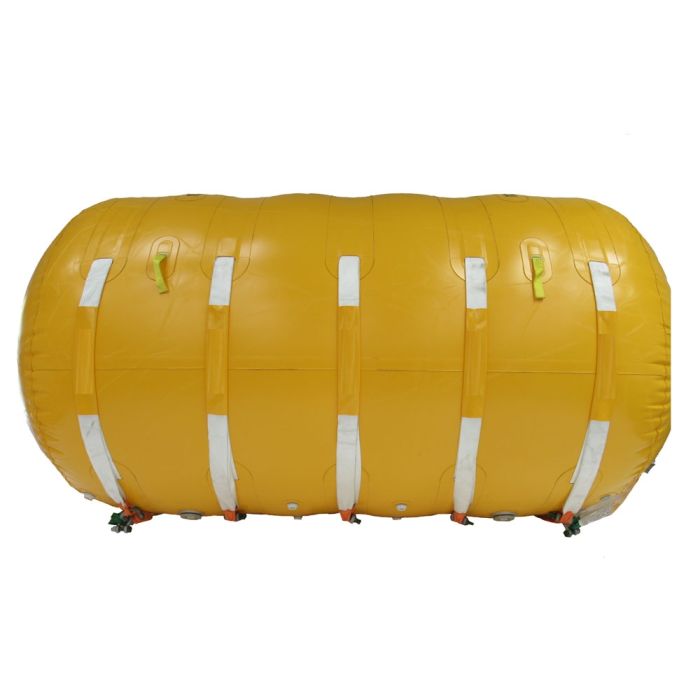

JWA 710189 Premier Cylindrical Enclosed Lift Bag - 22,000 lbs (10,000 kg) Lift Capacity

Features:

• For shallow water and surface floatation, draft reduction, and towing, Totally Enclosed Cylindrical bags are ideal for general lifting and buoyancy provision. Remote inflation and deflation increases safety and provides lifting options for a wide range of applications.
• Shackle location and provision of heavy-duty straps ensures level lifting on awkward shaped objects can be achieved. Used in conjunction with lifting beams, cylindrical bags offer support and lifting options for a wide range of applications.
• Fabricated from tough 3 ply PVC fabric with a load-bearing structural polyester scrim, coated on both sides with PVC for durability & UV resistance.
• Radio Frequency welded seams for strength and integrity.
• Manufactured in accordance with IMCA D-016 Rev 4:2016 standards.
• Supplied ready for use, complete with user manual and service record book.

Specifications:

• Model: T10
• Lift Capacity: 22,000 lbs (10,000 kg)
• Overall Height including Straps: 2.08 m
• Overall Diameter: 1.91 m
• Overall Length: 3.93 m
• Net Weight: 126.0 kg
• Approx Folded Dimensions: 0.60 x 1.30
• Material: 3x3 PVC
