Umbilical Specs:

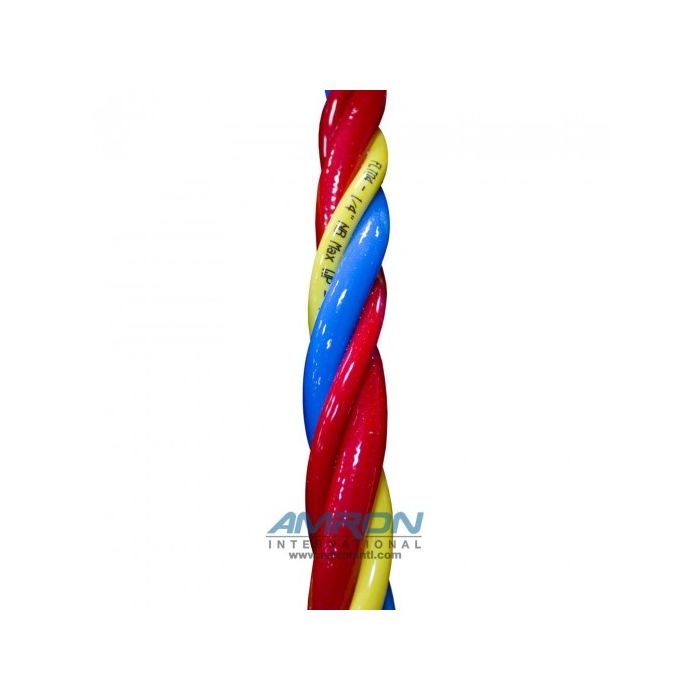

Application (All come combined spiraled together):
- DCS0001 - Surface dive umbilicals for communication.
- FLT04 - Hose delivers air to measure the diver's depth underwater.
- FLT06 - Hose delivers air for the diver to breathe underwater.
- FLT08 - Hose delivers hot water to the diver's hot water suit for warmth underwater.
Featured:
- Tough, kink and abrasion resistant
- Buoyant in sea and fresh water
- Clean and odor free
- Flexible and non-aging
Specifications:
4 Part umbilical-Air, Pneumo, Hot Water and Comms/Strength Includes:
DCS0001 Communication Cable Specifications:
- Screened Pairs: 2 x 0.5 mm2
- Polyester Strength Braid: 500 kg minimum break strength
- Red polyurethane outer sheath: 1.7 mm nominal thickness
- Weight in Air: 120 kg/km
- Weight in Sea Water: 25 kg/km
- O.D. mm: 11.0 mm
- Standard Color: Red
FLT04 - 1/4 Inch Pneumo Hose Specifications:
- Hose Type: Fibrolite
- Max Working Pressure: 400 PSI / 27.5 bar
- Minimum Burst Pressure: 1600 PSI / 110 bar
- Nominal Bore: 1/4 inch / 6.3 mm
- Outside Diameter: 11.5 mm
- Weight in Air: 82 kg/km
- Weight in Sea Water: -25 kg/km
- Minimum Bend Radius (Static): 75 mm
- Minimum Bend Radius (Dynamic): 115 mm
- Tensile Rating: 100 kg
- Standard Color: Yellow
FLT06 - 3/8 Inch Breathing Air Hose Specifications:
- Hose Type: Fibrolite
- Max Working Pressure: 500 PSI / 35 bar
- Minimum Burst Pressure: 2000 PSI / 140 bar
- Nominal Bore: 3/8 inch / 9.5 mm
- Outside Diameter: 17.5 mm
- Weight in Air: 193 kg/km
- Weight in Sea Water: -53 kg/km
- Minimum Bend Radius (Static): 105 mm
- Minimum Bend Radius (Dynamic): 1160 mm
- Tensile Rating: 100 kg
- Standard Color: Blue
FLT08 - 1/2 Inch Hot Water Hose Specifications:
- Hose Type: Fibrolite
- Max Working Pressure: 400 PSI / 27.5 bar
- Minimum Burst Pressure: 1600 PSI / 110 bar
- Nominal Bore: 1/2 inch / 12/.5 mm
- Outside Diameter: 18.5 mm
- Weight in Air: 167 kg/km
- Weight in Sea Water: -109 kg/km
- Minimum Bend Radius (Static): 120 mm
- Minimum Bend Radius (Dynamic): 185 mm
- Tensile Rating: 100 kg
- Standard Color: Red
Note: Umbilical lengths are subject to +/- 2% over/under to the quoted length.
Note: Canadian Standards Association code CSA-275.2-04 states that the diver’s lifeline shall have a breaking strength of no less than 2000 lbs. This umbilical does not meet that standard. Please contact your Amron sales representative for an alternate spiral umbilical that can meet this standard.
Note: Australian Standards AS2299.1 3.13.6 requires that the minimum breaking strain of any potential load bearing component of a diver’s umbilical or lifeline shall be at least 6kn (600kg). This umbilical does not meet that standard. Please contact your Amron sales representative for an alternate spiral umbilical that can meet this standard.
Amron sells many different diving umbilical configurations. If you don’t see the configuration you need, please call our award winning sales staff at (760) 208-6500 or email us at sales@amronintl.com to help build your diving umbilical, get a quote, and place your order today!
Fittings:
3/8 Inch ID Oxygen Hose Fitting Specifications:
Hose Details:
- Bore (ID): 3/8 inch
- Hose Type: Fibrolite, Fibroline and Fibroflex
- Hose Fitting: Oxygen
- Part Number: FLT06/R - Fibrolite, FBL06 - Fibroline and FDH06 - Fibroflex
- O.D.: FLT06/R - 17.50 mm, FBL06 - 18.50 mm FDH06 - 18.25 mm
- Max Working Pressure: FLT06/R - 500 PSI, FBL06 - 500 PSI and 1000 PSI
Ferrule O.D.:
- Body Material: Swageable Phosphor-Bronze
- Pre Swage: 25.4 mm
- Post Swage: FLT06/R - 21.5 CDD ± 0.20 mm, FBL06 - 23.0 CDD ± 0.20 mm and FDH06 - 21.8 CDD ± 0.15 mm
- Crimp down diameters (CDD) are for Cortland phosphor bronze hose end fittings for the Cortland ranges of diving hoses
- FLT06R has a thicker sheath than FLT06 and associated larger OD. This became Fibrolite standard in Aug 2004.
3/8 Inch ID #6 JIC Hose Fitting Specifications:
Hose Details:
- Bore (ID): 3/8 inch
- Hose Type: Fibrolite, Fibroline and Fibroflex
- Hose Fitting: #6 JIC
- Part Number: FLT06/R - Fibrolite, FBL06 - Fibroline and FDH06 - Fibroflex
- D.: FLT06/R - 17.50 mm, FBL06 - 18.50 mm FDH06 - 18.25 mm
- Max Working Pressure: FLT06/R - 500 PSI, FBL06 - 500 PSI and 1000 PSI
Ferrule O.D.:
- Body Material: Swageable Phosphor-Bronze
- Pre Swage: 25.4 mm
- Post Swage: FLT06/R - 21.5 CDD ± 0.20 mm, FBL06 - 23.0 CDD ± 0.20 mm and FDH06 - 21.8 CDD ± 0.15 mm
Note:
- Crimp down diameters (CDD) are for Cortland phosphor bronze hose end fittings for the Cortland ranges of diving hoses.
- FLT06R has a thicker sheath than FLT06 and associated larger OD. This became Fibrolite standard in Aug 2004.
1/4 Inch ID Oxygen Hose Fitting Specifications:
Hose Details:
- Body Material: Swagable Phosphor - Bronze
- Bore: 1/4 inch
- Hose Type: Fibroflex and Fibrolite
- Hose Fitting: Oxygen
- Part Number: FDH04
- O.D.: 11.90 mm
- Max Working Pressure: 1000 PSI
Ferrule O.D.:
- Pre Swage: 19.00 mm
- Post Swage: 15.85 CDD ± 0.15 mm
Note: Crimp down diameters (CDD) are for Cortland phosphor bronze hose end fittings for the Cortland ranges of diving hoses.
1/4 Inch ID #4 JIC Hose Fitting Specifications:
Hose Details:
- Body Material: Swagable Phosphor - Bronze
- Bore: 1/4 inch
- Hose Type: Fibrolite or Fibriflex
- Hose Fitting: #4 JIC
- Part Number: FLT04
- O.D.: 11.50 mm
- Max Working Pressure: 400 PSI
Ferrule O.D.:
- Pre Crimp: 19.00 mm
- Post Crimp: 16.00 CDD ± 0.20 mm
Note: Crimp down diameters (CDD) are for Cortland phosphor bronze hose end fittings for the Cortland ranges of diving hoses.
1/2 Inch ID #8 JIC Hose Fitting Specifications:
Hose Details:
- Body Material: Swagable Phosphor - Bronze
- Bore: 1/2 inch
- Hose Type: Fibrolite
- Hose Fitting: #8 JIC
- Part Number: FLT08
- O.D.: 18.50 mm
- Max Working Pressure: 400 PSI
Ferrule O.D.:
- Pre Crimp: 25.40 mm
- Post Crimp: 22.00 CDD ± 0.20 mm
Note: Crimp down diameters (CDD) are for Cortland phosphor bronze hose end fittings for the Cortland ranges of diving hoses.
1/2 Inch ID NPT Male Rigid SS Hose Fitting Specifications:
Hose Details:
- Body Material: MNPT Stainless Steel
- Bore: 1/2 inch
