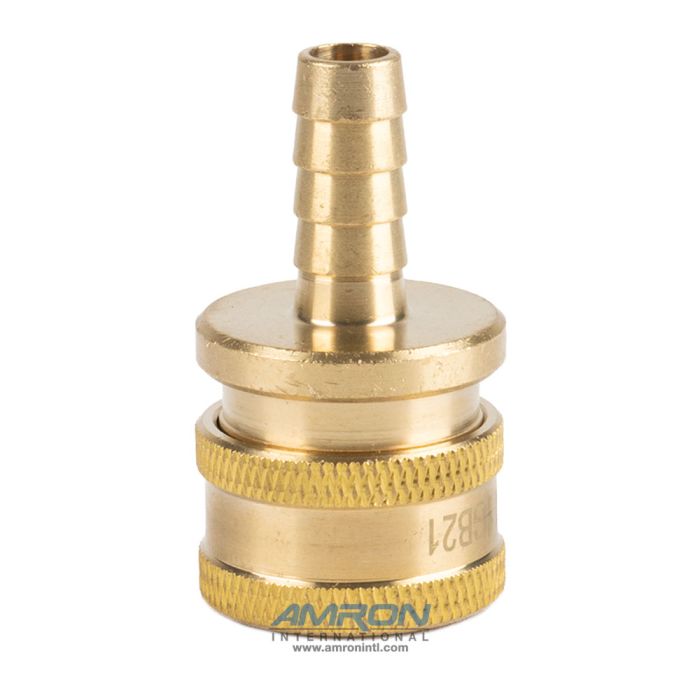

Dixon 3ES3-B E- Series Straight Through 3/8 In. Hose Barb Coupler, Brass

• Straight-through pressure-wash interchange.
• Machined components are manufactured using solid bar stock.
• These couplers have no internal valves, providing maximum flow and minimum pressure drops.

• Body: Brass
• Seals: Nitrile rubber
• Hose ID: 3/8 in.
• Length: 2.03 in. (51.6 mm)
• Body Size: 3/8 in.
• Maximum OD: 1.13 in. (28.6 mm)
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
• Maximum Operating Pressure: 2700 psi (186 bar)
• Burst Pressure: 10,800 psi (745 bar)
• Interchangeable with Parker-Hannifin ST Series, Hansen ST-Series, Foster FST Series and Tomco ST couplings
• Weight: 0.21 lb.

Safety Notes:

• Do not disconnect with pressure in line.
• Operating pressures for the standard hose barbs utilizing hose barb end connections may be dramatically reduced to that of the hose rating and/or hose and end connection combination.  Consult hose manufacturer's catalog for hose end connection ratings.  If in doubt, test under controlled conditions for suitability to application.
• Liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death passes to the consumer.

WARNING:  This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other productive harm.
