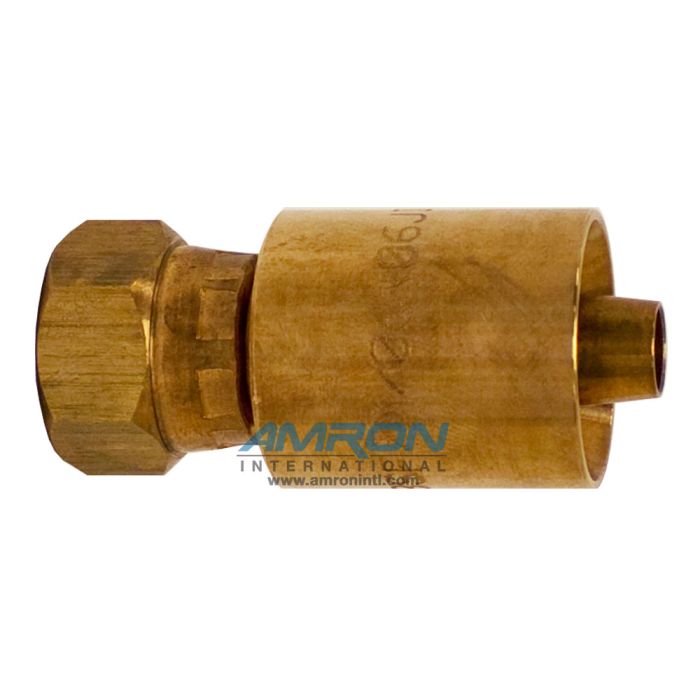

Fibron FPBSF/M/06-06JIC - 3/8 inch #6 JIC Hose Fitting Swageable Phosphor-Bronze

Applications:

• #6 JIC Hose fitting for 3/8 inch I.D. Fibron Fibrolite and Fibroflex Umbilical Hoses

Specifications:

• Hose Details:
  • Bore (ID): 3/8 inch
  • Hose Type: Fibrolite, Fibroline and Fibroflex
  • Hose Fitting: #6 JIC
  • Part Number: FLT06/R - Fibrolite, FBL06 - Fibroline and FDH06 - Fibroflex
  • D.: FLT06/R - 17.50 mm, FBL06 - 18.50 mm FDH06 - 18.25 mm
  • Max Working Pressure: FLT06/R - 500 PSI, FBL06 - 500 PSI and  1000 PSI
• Ferrule O.D.:
  • Body Material: Swageable Phosphor-Bronze
  • Pre Swage: 25.4 mm
  • Post Swage: FLT06/R - 21.5 CDD ± 0.20 mm, FBL06 - 23.0 CDD ± 0.20 mm and FDH06 - 21.8 CDD ± 0.15 mm

Note:

• Crimp down diameters (CDD) are for Fibron phosphor bronze hose end fittings for the Fibron ranges of diving hoses.

• FLT06R has a thicker sheath than FLT06 and associated larger OD. This became Fibrolite standard in Aug 2004.
